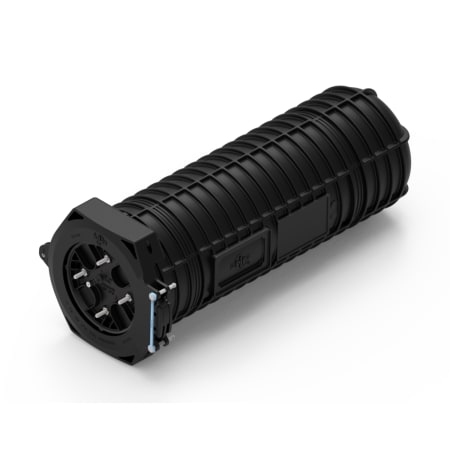

9.5x28 COYOTE® DOME CLOSURE- BUFFER FOR SINGLE FUSION SPLICING
MFR #:80061055
GCG #:80061055
MFR #:80061055
GCG #:80061055
Min Qty:1
|Qty Increment:1
The COYOTE® Dome Closures have the versatility and features that make it a perfect choice for fiber-to-the premises networks. Both the 6.5" and 9.5" dome closure designs use PLP’s patented segmented end plate system which allows independent access to each cable port without disruption to surrounding cables. COYOTE 9.5" x 28" Dome Closure for Buffer Tube - Includes (2) 1-Hole Grommets 0.60" - 0.85" (15.2 - 21.6 mm) and (2) 1-Hole Grommets 0.85" - 1.00" (21.6 - 25.4 mm)
Request Quote
Min Qty:1
|Qty Increment:1
The COYOTE® Dome Closures have the versatility and features that make it a perfect choice for fiber-to-the premises networks. Both the 6.5" and 9.5" dome closure designs use PLP’s patented segmented end plate system which allows independent access to each cable port without disruption to surrounding cables. COYOTE 9.5" x 28" Dome Closure for Buffer Tube - Includes (2) 1-Hole Grommets 0.60" - 0.85" (15.2 - 21.6 mm) and (2) 1-Hole Grommets 0.85" - 1.00" (21.6 - 25.4 mm)
- Attributes
- Features
Attributes
General Information
ManufacturerPLP
Design & Construction
MaterialEngineered Plastic
Physical Properties
Length29.4 IN
Features
- Butt/Expressed Splice Configuration
- Application: Direct buried, below grade, pole/wall mount or aerial
- Quick to assemble, no special tools required
- Tested in accordance to GR-771-CORE by an independent outside lab
- Available in flame retardant material
- Collar system allows for quick re-entry
- Segmented end plate design provides independent access to every cable
- Flexible grommet sealing technology supports a wide range and quantity of flat or round cable profiles.
- Standard 6-1/2" Dome Kits provided with (2) 8003691 grommets and (2) 8003692 grommets. Customized kits available upon request.
- Standard 9-1/2" Dome Kits provided with (2) 8003692 grommets and (2) 8003693 grommets. Customized kits available upon request.
- In-Line options available – Contact PLP for details
