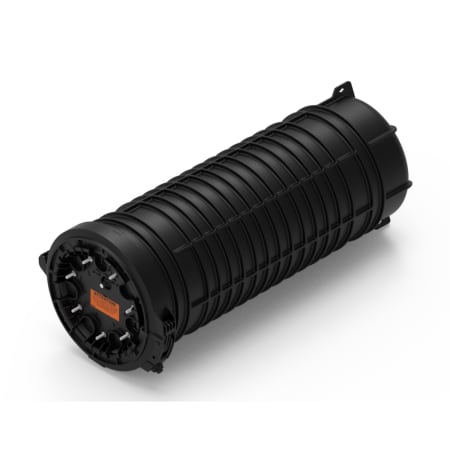

9.5x28 COYOTE® DOME CLOSURE - HIGH DENSITY - WITH STANDARD TRANSITION TRAY FOR MASS FUSION SPLICING
MFR #:80061409
GCG #:80061409
MFR #:80061409
GCG #:80061409
Min Qty:1
|Qty Increment:1
The COYOTE® HD Dome Closure offers an alternative fiber organizer to support high-density splice applications within the same footprint as our existing 9.5" x 28" COYOTE Dome Closure. The new organizer architecture provides open access for fiber routing, reduces cable sheath openings, and simplifies assembly; all factors that save you time and money. When combined with PLP’s patented segmented end plate design, the new closure system offers the ultimate level of flexibility to address your complex network needs. COYOTE HD Dome Closure with Transition Tray for Ribbon - Includes (2) 1-Hole Grommets 1.00"-1.25" (25.4-31.8mm) and (2) 1-Hole Grommets 1.25"-1.38" (31.8-35.0mm), and (1) 6-Pack of 36" long 0.25" ID Transition Tubing
Request Quote
Min Qty:1
|Qty Increment:1
The COYOTE® HD Dome Closure offers an alternative fiber organizer to support high-density splice applications within the same footprint as our existing 9.5" x 28" COYOTE Dome Closure. The new organizer architecture provides open access for fiber routing, reduces cable sheath openings, and simplifies assembly; all factors that save you time and money. When combined with PLP’s patented segmented end plate design, the new closure system offers the ultimate level of flexibility to address your complex network needs. COYOTE HD Dome Closure with Transition Tray for Ribbon - Includes (2) 1-Hole Grommets 1.00"-1.25" (25.4-31.8mm) and (2) 1-Hole Grommets 1.25"-1.38" (31.8-35.0mm), and (1) 6-Pack of 36" long 0.25" ID Transition Tubing
- Attributes
- Features
- Specifications
Attributes
General Information
ManufacturerPLP
Design & Construction
MaterialSilicone
Physical Properties
Length1.0 IN
Features
- Maximum Splice Capacity of 1728 or 3456 depending on cable construction
- 7-Port segmented end plate design provides independent access to each cable port without disruption to surrounding cables
- Two splice tray designs to support mass fusion splicing, single fusion, or a combination of both
- Modular tray design permits trays to hinge upward or be removed from the stack to allow multiple splicers to work simultaneously
- Grommet range now accepts fiber optic cable entry of up to 1.38" in diameter
Specifications
- Size: 13.33" Diameter. x 29.47" L (33.86cm Diameter. x 74.8cm L), includes Sealing Collar
- Approximate Weight: 24 lbs.
- Applications: Direct Bury, Manhole, Handhole, Wall/Pole, Aerial Mounting (ADSS and Strand)
- Degree of Protection: Tested in accordance to TELCORDIA® GR-771-CORE Buried, Underground, IP-68
- Max Splice Capacity: 3456; using (12) 80813122 Thin Profile Ribbon Flip Trays, 288 Ct.; 1728 using (6) 80813121 Deep Profile Ribbon Flip Trays, 288 Ct.
- Max Quantity of Cables: 7; Multiple cables can enter each port
- Cable Diameters Supported: Ports 1-7: 0.093"-1.25" (2.4 mm-31.8 mm); Ports 3 and 6 can support 0.093"-1.38" (2.4mm-35.0mm) upon request
