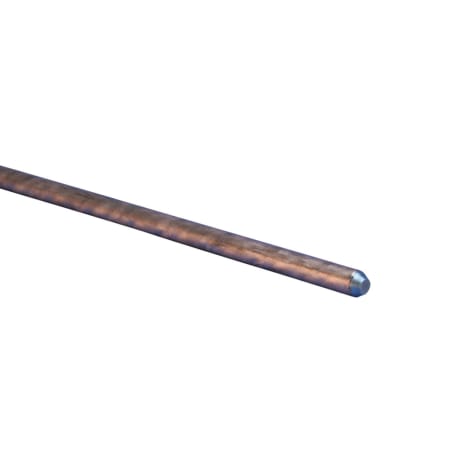

nVent ERICO 613470 Copper-Bonded Ground Rod, Pointed, 3/4" Diameter, 6.9', 10 mil Plating, 8.454 lb
MFR #:613470
GCG #:613470
MFR #:613470
GCG #:613470
Call for Availability
Min Qty:1
Ā Ā |Ā ĀQty Increment:1
Copper-Bonded Ground Rod, Pointed, 3/4" Diameter, 6.9', 10 mil Plating, 8.454 lb
Request Quote
Min Qty:1
Ā Ā |Ā ĀQty Increment:1
Copper-Bonded Ground Rod, Pointed, 3/4" Diameter, 6.9', 10 mil Plating, 8.454 lb
- Attributes
- Features
Attributes
General Information
ManufacturernVent ERICO
Design & Construction
MaterialCopper-Bonded
Size3/4"
Physical Properties
Length6.9 FT
Weight8.4 LBS.
Features
- 99.9% pure electrolytic copper coating
- Molecular bond to nickel-sealed high strength steel core
- Rods have a high carbon steel core and tip that provide superior strength when driving
- Copper coating will not crack when bent or tear when driven
- Minimum copper coating of 10 mils on rods listed to ULĀ® 467
- nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
- UL logo and control number where applicable stamped on each rod for easy inspection after installation
