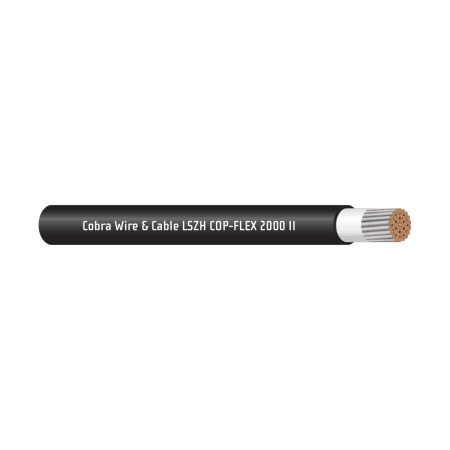

Cobra Cop-Flex® List 2 10AWG Black LSZH, 600V, Telecom Power Cable
MFR #:CPI010T-07
GCG #:CPI010T-07
MFR #:CPI010T-07
GCG #:CPI010T-07
In Stock
Min Qty:1
|Qty Increment:1
CUT CUSTOMIZATION: This product can be cut in various lengths. Cut selections can be made in the cart.
This single conductor 600V/1000V RHH/RHW/LS non-halogenated cable with stranded tinned copper has an extruded insulation consisting of a crosslinked polyolefin compound. It is intended for us in central office systems and other general wiring applications. It is also ideal for people-sensitive or critical equipment areas where low smoke, halogen free insulation systems are highly desirable. It may be installed in conduit, raceways, duct, aerial or direct burial.
$0.65 / FEET
Add Cut Lengths in Cart
Add cut lengths in cart
Min Qty:1
|Qty Increment:1
CUT CUSTOMIZATION: This product can be cut in various lengths. Cut selections can be made in the cart.
This single conductor 600V/1000V RHH/RHW/LS non-halogenated cable with stranded tinned copper has an extruded insulation consisting of a crosslinked polyolefin compound. It is intended for us in central office systems and other general wiring applications. It is also ideal for people-sensitive or critical equipment areas where low smoke, halogen free insulation systems are highly desirable. It may be installed in conduit, raceways, duct, aerial or direct burial.
- Attributes
- Features
Attributes
General Information
ManufacturerCobra Wire & Cable
Design & Construction
ClassClass K Stranding
Conductor MaterialTinned Copper
Gauge Size10AWG
Jacket ColorBlack
Electrical Properties
CSA ApprovedYes
Insulation MaterialLSZH, RHH/RHW, 90°C Dry, 75°C Wet
UL RatingUL 44 Type RHH/RHW, FT4-ST1, VW-1, UL 1699
Voltage Rating600V
Physical Properties
Cable Weight per Foot0.05
Conductor TypeStranded
Features
- Annealed Class I tinned copper strand
- RHH/RHW per UL44. ASTM B-33 (Tinned Conductors) ASTM B-172 (Rope Lay stranded conductors). Telcordia (Bellcore) GR-347-CORE. UL 1685 LS (Limited Smoke). Rating per FT-4/IEEE1202. CSA FT-1 per C22.2 No.210.1. Oil resistant II per UL-44. Sunlight resistant for CT use 1/0 and larger. Rated 105°C AWM per UL subject 758 (style 3578/3237)
- Crosslinked polyolefin base compound optimized for superior electrical properties. Specifically formulated to provide rugged, self-lubricating outer covering delivering superior performance, with the additional benefits of low-smoke and halogen free materials
- 600/1000 Volts
- Rated 90°C dry, 75°C wet
