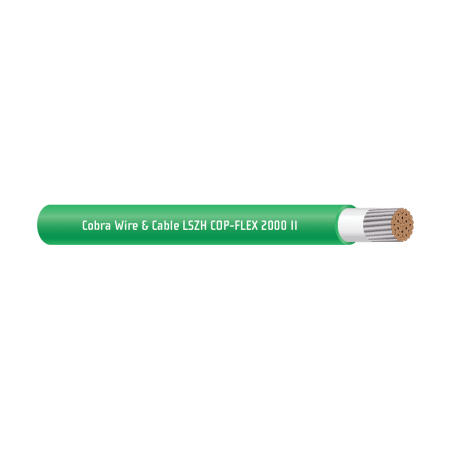

Cobra Cop-Flex® List 2 750MCM Green LSZH, 600V, Telecom Power Cable
MFR #:CPI750T-03
GCG #:CPI750T-03
MFR #:CPI750T-03
GCG #:CPI750T-03
Call for Availability
Min Qty:1
|Qty Increment:1
This single conductor 600V/1000V RHH/RHW/LS non-halogenated cable with stranded tinned copper has an extruded insulation consisting of a crosslinked polyolefin compound. It is intended for us in central office systems and other general wiring applications. It is also ideal for people-sensitive or critical equipment areas where low smoke, halogen free insulation systems are highly desirable. It may be installed in conduit, raceways, duct, aerial or direct burial.
Request Quote
Min Qty:1
|Qty Increment:1
This single conductor 600V/1000V RHH/RHW/LS non-halogenated cable with stranded tinned copper has an extruded insulation consisting of a crosslinked polyolefin compound. It is intended for us in central office systems and other general wiring applications. It is also ideal for people-sensitive or critical equipment areas where low smoke, halogen free insulation systems are highly desirable. It may be installed in conduit, raceways, duct, aerial or direct burial.
- Attributes
- Features
Attributes
General Information
ManufacturerCobra Wire & Cable
Design & Construction
ClassClass I Stranding
Conductor MaterialTinned Copper
Gauge Size750MCM
Jacket ColorGreen
Electrical Properties
CSA ApprovedYes
Insulation MaterialLSZH, RHH/RHW, 90°C Dry, 75°C Wet
UL RatingUL 44 Type RHH/RHW, FT4-ST1, VW-1, UL 1748
Voltage Rating600V
Physical Properties
Cable Weight per Foot2.67
Conductor TypeStranded
Features
- Annealed Class I tinned copper strand
- RHH/RHW per UL44. ASTM B-33 (Tinned Conductors) ASTM B-172 (Rope Lay stranded conductors). Telcordia (Bellcore) GR-347-CORE. UL 1685 LS (Limited Smoke). Rating per FT-4/IEEE1202. CSA FT-1 per C22.2 No.210.1. Oil resistant II per UL-44. Sunlight resistant for CT use 1/0 and larger. Rated 105°C AWM per UL subject 758 (style 3578/3237)
- Crosslinked polyolefin base compound optimized for superior electrical properties. Specifically formulated to provide rugged, self-lubricating outer covering delivering superior performance, with the additional benefits of low-smoke and halogen free materials
- 600/1000 Volts
- Rated 90°C dry, 75°C wet
