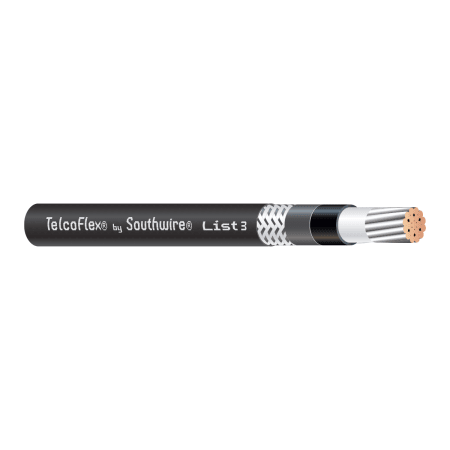

14AWG TelcoFlex® List 3 Black
Spec #:41014
MFR #:57133501
GCG #:408943892
Spec #:41014
MFR #:57133501
GCG #:408943892
In Stock
Min Qty:1
|Qty Increment:1
Limited smoke, non-halogenated power cable insulated with TelcoHyde® 5221 with an overall flame retardant saturated braid. UL listed Type RHH, FT4-ST1 in accordance with the National Electrical Code. Product is for use in Central Office, CATV Head End, Data Center and Cell Tower applications. Cable is suitable for UL “CT USE” (Cable Tray rated) in sizes 1/0 AWG and larger.
$0.67 / FEET
Min Qty:1
|Qty Increment:1
Limited smoke, non-halogenated power cable insulated with TelcoHyde® 5221 with an overall flame retardant saturated braid. UL listed Type RHH, FT4-ST1 in accordance with the National Electrical Code. Product is for use in Central Office, CATV Head End, Data Center and Cell Tower applications. Cable is suitable for UL “CT USE” (Cable Tray rated) in sizes 1/0 AWG and larger.
- Attributes
- Features
- Specifications
- Documents
Attributes
Environmental Properties
Fire-Rated FT4Yes
Temperature Rating (Max)105°C
General Information
ManufacturerSouthwire
Design & Construction
ClassClass B Stranding
Conductor MaterialTinned Copper
Gauge Size14AWG
TypeList 3
Jacket MaterialTelcoHyde® 5221
Jacket ColorBlack
Cable Diameter Max (in)0.226
Solid/StrandedStranded
Stranding7
Electrical Properties
CSA ApprovedYes
Insulation MaterialLSZH, RHH TelcoHyde 5221, 105°C Dry, 60°C Wet
UL RatingUL 44 Type RHH, FT4-ST1, VW-1, UL 2731
Voltage Rating600V
Physical Properties
Bend Radius (in)2
Cable Weight per Foot0.03
Conductor TypeStranded
Weight per Foot0.03
Features
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
- UL 2731 Telecommunications Central Office Power Cable
- CSA AWM IB 105°C 600V. FT4-ST1
- IEC including 60674 and 60332
- RoHS Compliant Lead-Free, Silicone-Free
- KS-24194™ List 3
- ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
- Telcordia GR-347-CORE
- REACH - European Community Regulation '
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
- UL 2731 Telecommunications Central Office Power Cable
- CSA AWM IB 105°C 600V. FT4-ST1
- IEC including 60674 and 60332
- RoHS Compliant Lead-Free, Silicone-Free
- KS-24194™ List 3
- ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
- Telcordia GR-347-CORE
- REACH - European Community Regulation '
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
- UL 2731 Telecommunications Central Office Power Cable
- CSA AWM IB 105°C 600V. FT4-ST1
- IEC including 60674 and 60332
- RoHS Compliant Lead-Free, Silicone-Free
- KS-24194™ List 3
- ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
- Telcordia GR-347-CORE
- REACH - European Community Regulation
Specifications
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
- UL 2731 Telecommunications Central Office Power Cable
- CSA AWM IB 105°C 600V. FT4-ST1
- IEC including 60674 and 60332
- RoHS Compliant Lead-Free, Silicone-Free
- KS-24194™ List 3
- ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
- Telcordia GR-347-CORE
- REACH - European Community Regulation
