1-1/4" - 12" Expanding Anchor
MFR #:19025
GCG #:19025
MFR #:19025
GCG #:19025
Min Qty:1
  | ÂQty Increment:1

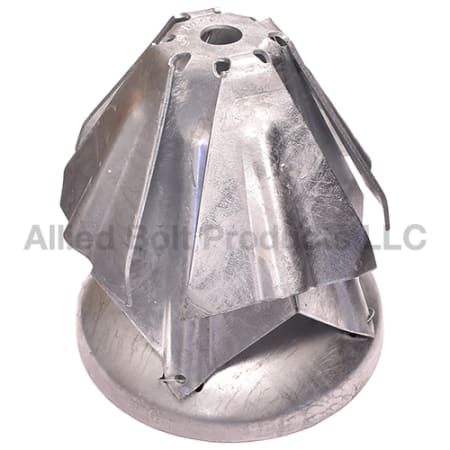

12" Expanding Anchor for 1-1/4" Rod
Request Quote
Min Qty:1
  | ÂQty Increment:1
12" Expanding Anchor for 1-1/4" Rod
- Attributes
- Features
Attributes
General Information
ManufacturerAllied Bolt
Design & Construction
MaterialGalvanized
Size1-1/4"
Features
- Offers excellent holding power with minimal soil disturbance.
- A two piece assembly that consists of a curved base plate and an integral unit with eight expanding blades.
- The anchor is hot dip galvanized to meet ASTM specifications F2329.
- Formed metal cavity on the underside of the curved base unit accepts the nut of the guy rod when assembling the anchor.
- The blades expand in a lateral motion by forcing the curved blades against the curved base.
- Anchor is for 12" diameter hole.
- Manufactured from AISI 1018 Steel.
- Holding strength per soil class:
- Soil Class 3: 40000 lbs
- Soil Class 4: 34000 lbs
- Soil Class 5: 26500 lbs
- Soil Class 6: 21500 lbs
- Soil Class 7: 16000 lbs
