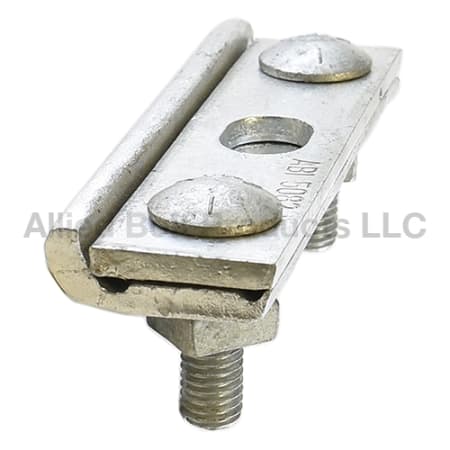

5/8" Suspension Clamp w/Flat Keeper Plate
MFR #:5082
GCG #:5082
MFR #:5082
GCG #:5082
Min Qty:1
|Qty Increment:1
Suspension Clamp with Flat Keeper Plate for 5/8" Thru Bolts
Request Quote
Min Qty:1
|Qty Increment:1
Suspension Clamp with Flat Keeper Plate for 5/8" Thru Bolts
- Attributes
- Features
Attributes
General Information
ManufacturerAllied Bolt
Design & Construction
Size5/8"
Features
- Used to attach strand to straight line poles.
- Accepts 1/4" (6.6M) to 7/16" (16M) strand.
- Consists of one hot rolled specialty shaped plate, one stamped flat plate, and two 1/2"-13 track bolts with attached square nuts.
- Plates are 1-11/16" wide and 5-3/4" long.
- Center hole accepts 5/8" Thru Bolts.
- Hot dip galvanized to meet ASTM Specification A153.
