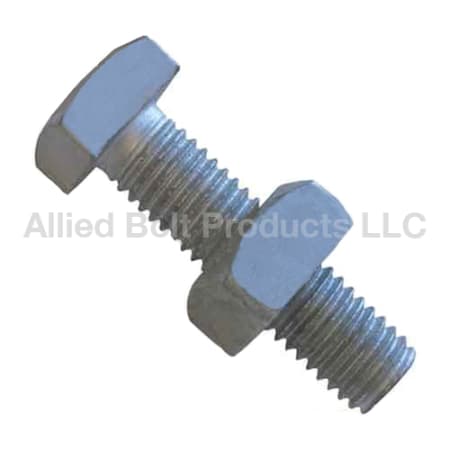

1/2" X 1-1/2" Square Head Machine Bolt w/Nut
MFR #:8920
GCG #:8920
MFR #:8920
GCG #:8920
Min Qty:1
  | ÂQty Increment:1
1/2" X 1-1/2" Square Head Machine Bolt with Nut
Request Quote
Min Qty:1
  | ÂQty Increment:1
1/2" X 1-1/2" Square Head Machine Bolt with Nut
- Attributes
- Features
Attributes
General Information
ManufacturerAllied Bolt
Design & Construction
MaterialGalvanized
Size1/2"
Physical Properties
Length1-1/2"
Features
- Used for fastening poleline hardware to crossarms, poles, and other structures.
- Allied Bolt marking (ABI) appears on the head of each bolt.
- Hot dip galvanized to meet ASTM Specification F2329.
- Supplied with attached square nut.
- Minimum tensile strength: 8,500 lbf,
- Recommended torque value: 37 ft lb.
- Minimum thread length is 1-1/4".
- Material conforms to ASTM specification A307.
- Dimensions conform to ASME B18.2.1.
