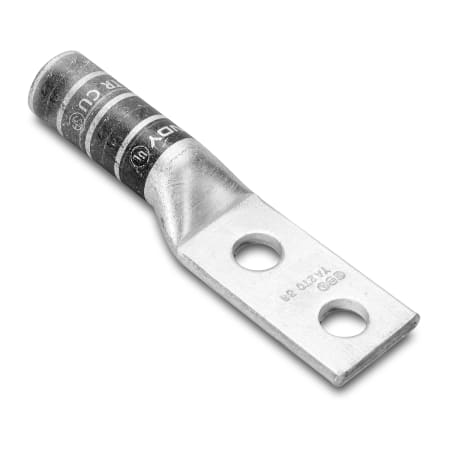

Burndy YA252TC38
MFR #:YA252TC38
GCG #:YA252TC38
UPC #:781810019825
MFR #:YA252TC38
GCG #:YA252TC38
UPC #:781810019825
In Stock
Min Qty:1
|Qty Increment:1
1/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pinnk Color Code, 12 or 348 Die Index
Request Quote
Min Qty:1
|Qty Increment:1
1/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pinnk Color Code, 12 or 348 Die Index
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleChamfered
Barrel TypeLong
MaterialCopper
Gauge Size1/0
TypeLong Barrel, Tin Plated
Die Index12
Number of Holes2
Stud Size3/8
Stud Spacing1.00 in
Tongue AngleStraight
Tongue TypeStandard
Electrical Properties
Cable TypeLong Barrel, Tin Plated
CSA ApprovedYes
UL RatingYes
Physical Properties
Conductor TypeCode
Weight0.09 lb
