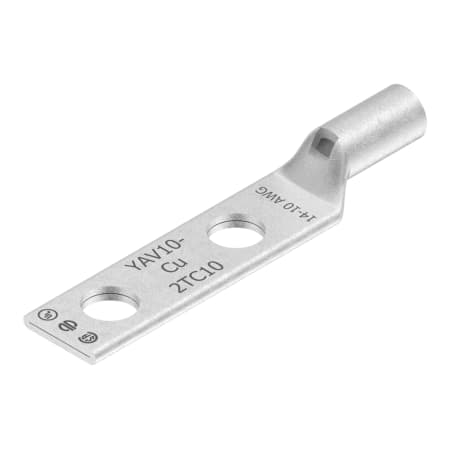

Burndy YAV102TC10
MFR #:YAV102TC10
GCG #:YAV102TC10
UPC #:781810021835
MFR #:YAV102TC10
GCG #:YAV102TC10
UPC #:781810021835
In Stock
Min Qty:1
|Qty Increment:1
14-10 AWG - 12-10 Sol CU, Two Hole, #10 Stud Size, 5/8 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV
$2.88 / EACH
Min Qty:1
|Qty Increment:1
14-10 AWG - 12-10 Sol CU, Two Hole, #10 Stud Size, 5/8 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleChamfered
Barrel TypeStandard
MaterialCopper
Gauge Size10 AWG, 12 AWG, 14 AWG
TypeStandard Barrel, Tin Plated
Number of Holes2
Stud Size#10
Stud Spacing0.62 in
Tongue AngleStraight
Tongue TypeStandard
Electrical Properties
Cable TypeStandard Barrel, Tin Plated
CSA ApprovedYes
UL RatingYes
Physical Properties
Weight0.011 lb
