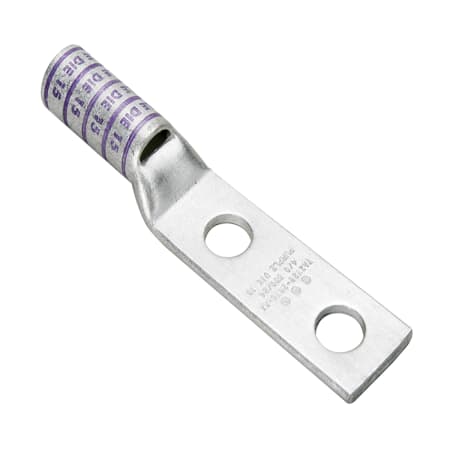

Burndy YAZ6C2TC10E2
MFR #:YAZ6C2TC10E2
GCG #:YAZ6C2TC10E2
UPC #:781810161036
MFR #:YAZ6C2TC10E2
GCG #:YAZ6C2TC10E2
UPC #:781810161036
In Stock
Min Qty:1
|Qty Increment:1
6 AWG CU, Two Hole, #10 Stud Size, 3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 7 or 374 Die Index
$5.78 / EACH
Min Qty:1
|Qty Increment:1
6 AWG CU, Two Hole, #10 Stud Size, 3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 7 or 374 Die Index
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleSkived
Barrel TypeLong
MaterialCopper
Gauge Size6 AWG
TypeLong Barrel, Skive, Tin Plated
Die Index7;374
Number of Holes2
Stud Size#10
Stud Spacing0.75 in
Tongue AngleStraight
Tongue TypeStandard
Electrical Properties
Cable TypeLong Barrel, Skive, Tin Plated
CSA ApprovedYes
UL RatingYes
Physical Properties
Weight0.03 lb
