CyberPower CR6U61001 Wall Mount Enclosure
MFR #:CR6U61001
GCG #:CR6U61001
MFR #:CR6U61001
GCG #:CR6U61001
Call for Availability
Min Qty:1
  | ÂQty Increment:1

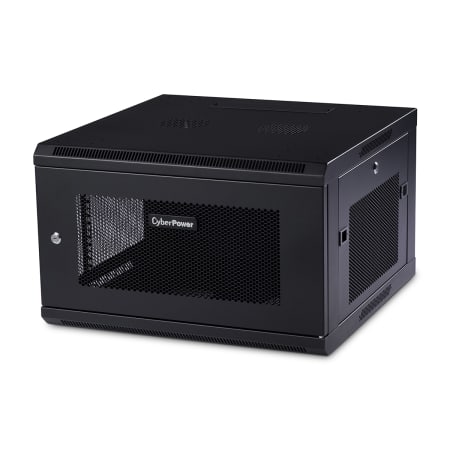

The CR6U61001 is designed for use in network closets, classrooms, and other locations. This wall mount rack houses network switches and patch panels up to 22" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR6U61001 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Request Quote
Min Qty:1
  | ÂQty Increment:1
The CR6U61001 is designed for use in network closets, classrooms, and other locations. This wall mount rack houses network switches and patch panels up to 22" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR6U61001 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
- Attributes
- Features
Attributes
Environmental Properties
EnvironmentalRoHS Compliant
Performance Details
Protection ClassIP20
VentilationPerforated Doors
General Information
ManufacturerCyberPower
Product Warranty5 Year Limited Warranty
Design & Construction
ColorBlack
Cable AccessTop and Bottom Openings
Cable Access Opening Dimensions9.8 x 2.2 in (249 x 56 m)
Factory Default Mounting Depth17.2 ft (436.9 mm)
Max. Mounting Depth (in.)22.2
Min. Mounting Depth (in.)1.9
Numbered Rack UnitsYes
Rack Angle Mounting Hole TypeSquare Mounting Holes
Rack Height6U
Physical Properties
Physical Dimensions - (WxHxD) (in.)23.6 x 14.6 x 23.6 (in)
Weight (LBS.)37.2
Features
- Perforated Front Door and Side Panels Provides ventilation for small servers and networking equipment.
- Reversible Door Front door has spring loaded hinges and can be easily moved to the opposite side.
- Quick Release Side Panels Lockable side panels can be removed easily for quick access to equipment and cabling.
- Cable Access Openings Slots in the bottom and top provide convenient cable routing to and from the enclosure.
- Rack Mounting Compatibility The CR6U61001 is compatible with all EIA-310 compliant 19" equipment.
- Adjustable Rack Angles Vertical rack angles can be adjusted in 3/4" increments for mounting depth requirements up to 22.2". U rack units are numbered front and back for easy equipment installation.
- Square and Threaded Mounting Holes Vertical rack angles have both square and threaded mounting holes, and can be turned easily to change mounting type.
- Designed for Stability A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.
- Integrated Electrical Grounding Grounding connections are located on the frame for facility ground.
