CyberPower CR9U61001 Wall Mount Enclosure
MFR #:CR9U61001
GCG #:CR9U61001
MFR #:CR9U61001
GCG #:CR9U61001
Call for Availability
Min Qty:1
  | ÂQty Increment:1

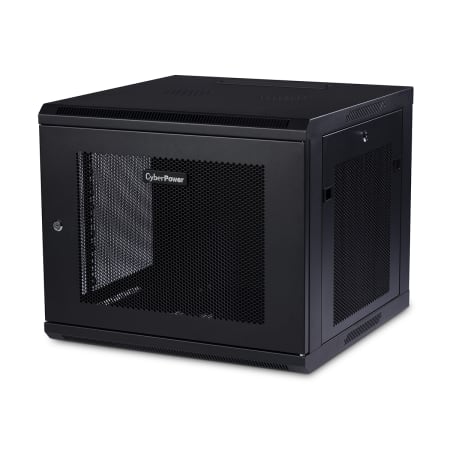

The CR9U61001 is designed for use in network closets, classrooms and other locations. This wall mount rack houses network switches and patch panels up to 22" deep. It includes convenient top panel cable access openings, perforated door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR9U61001 ships fully assembled for quick deployment, and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Request Quote
Min Qty:1
  | ÂQty Increment:1
The CR9U61001 is designed for use in network closets, classrooms and other locations. This wall mount rack houses network switches and patch panels up to 22" deep. It includes convenient top panel cable access openings, perforated door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR9U61001 ships fully assembled for quick deployment, and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
- Attributes
- Features
Attributes
Environmental Properties
EnvironmentalRoHS Compliant
Performance Details
Protection ClassIP20
VentilationPerforated Doors
General Information
ManufacturerCyberPower
Product Warranty5 Year Limited Warranty
Design & Construction
ColorBlack
Cable AccessTop and Bottom Openings
Cable Access Opening Dimensions9.8 x 2.2 in (249 x 56 m)
Factory Default Mounting Depth17.2 ft (436.9 mm)
Max. Mounting Depth (in.)22.2
Min. Mounting Depth (in.)1.9
Numbered Rack UnitsYes
Rack Angle Mounting Hole TypeSquare Mounting Holes
Rack Height9U
Physical Properties
Physical Dimensions - (WxHxD) (in.)23.6 x 19.9 x 23.6 (in)
Weight (LBS.)41.8
Features
- Rack Type: Wall Mount Enclosure
- Height: 9U
- Stationary Capacity: 132 lbs
- Max. mounting depth: 22.2"
- Mounting Hole Types: Square and Threaded
- Warranty: 5 Years
