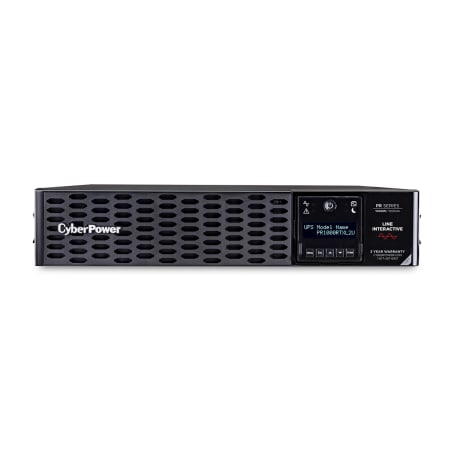

CyberPower PR1000RTXL2U New Smart App Sinewave UPS Systems

PR1000RTXL2U

MFR #:PR1000RTXL2U

GCG #:PR1000RTXL2U

MFR #:PR1000RTXL2U

GCG #:PR1000RTXL2U

Call for Availability

Min Qty:1

  |

Qty Increment:1

The PR1000RTXL2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to elimin... read more

Request Quote

Min Qty:1

  |

Qty Increment:1

CyberPower®
CyberPower®

The PR1000RTXL2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR1000RTXL2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and c... read more

Attributes

Performance Details
Operating Temperature32 - 104 °F (0 - 40 °C)
Storage Temperature5 - 113 °F (-15 - 45 °C)
Overload ProtectionInternal Circuitry Limiting
Runtime at Full Load8 min
Runtime at Half Load20 min
Environmental Properties
EnvironmentalRoHS Compliant
General Features
Energy Star CertifiedYes
Software (Free Download)PowerPanel® Business
General Information
ManufacturerCyberPower
Extended Warranty OptionWEXT5YR-U4A
Product Warranty3 Year Limited Warranty
Replacement Battery CartridgeRB1270X4H
Replacement Battery Cartridge Quantity1
Design & Construction
Battery TypeSealed Lead-Acid Battery
ColorBlack
Audible AlarmsBattery Mode
Battery Equalization TechnologyYes
Battery Quantity4
Emergency Power Off (EPO) PortYes
Extended Battery ModuleBP48VP2U01
HID Compliant USB PortYes
Input Plug TypeNEMA 5-15P
Input Voltage100 - 125 VAC
Input Voltage Range75 VAC - 149 VAC
LCDMultifunction LCD
LED IndicatorsPower On
Management CableUSB Cable
Material of ConstructionMetal
Network Protection RJ451 in / 1 out
Outlets - Battery & Surge Protected8
Outlets - Total8
Plug StyleRight Angle - 45° Offset
Rack Height2U
SNMP / HTTP Remote MonitoringYes - with optional RMCARD205
Typical Recharge Time3 Hours
Typical Transfer Time4 ms
User Replaceable BatteryYes
Electrical Properties
Input Frequency Range47 Hz - 63 Hz
Nominal Input Voltage120 VAC
Surge Suppression (Joules)2430 J
Watts1000 W
Physical Properties
Cord Length10 ft (3.0 m)
Physical Dimensions - (WxHxD) (in.)17.1 x 3.4 x 16.2 (in)
Weight (LBS.)55.3
