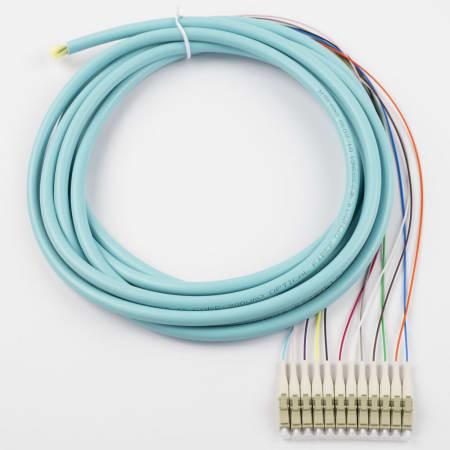

12 Fiber 900um Pigtail, OM3 50/125 Multimode Simplex LC 3m
MFR #:T12-L119-BL-3RD-003M
GCG #:T12-L119-BL-3RD-003M
MFR #:T12-L119-BL-3RD-003M
GCG #:T12-L119-BL-3RD-003M
Min Qty:1
|Qty Increment:1
Commonly used in CATV, FTTX, telecommunication networks, and premise installations 12 Fiber pack, OM3 900μm tight-buffered optical fiber with LC or SC connectors pre-installed on one end and a length of exposed fiber at the other end. Standard 3 meter length. The end of the pigtail is ready to be stripped and fusion or mechanically spliced to a single fiber of a multi-fiber trunk. Designed for high fiber count splicing applications. Color coded to TIA-598-A industry standards for ease of use (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua).
Request Quote
Min Qty:1
|Qty Increment:1
Commonly used in CATV, FTTX, telecommunication networks, and premise installations 12 Fiber pack, OM3 900μm tight-buffered optical fiber with LC or SC connectors pre-installed on one end and a length of exposed fiber at the other end. Standard 3 meter length. The end of the pigtail is ready to be stripped and fusion or mechanically spliced to a single fiber of a multi-fiber trunk. Designed for high fiber count splicing applications. Color coded to TIA-598-A industry standards for ease of use (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua).
- Attributes
Attributes
Environmental Properties
Temperature Rating (Max)70°C
Temperature Rating (Min)-20°C
General Information
ManufacturerLynn
Design & Construction
Connector TypeLC
Jacket MaterialOFNR
Fiber Count12
Fiber TypeOM3
Electrical Properties
TUV CertifiedYes
Physical Properties
Weight5.6
