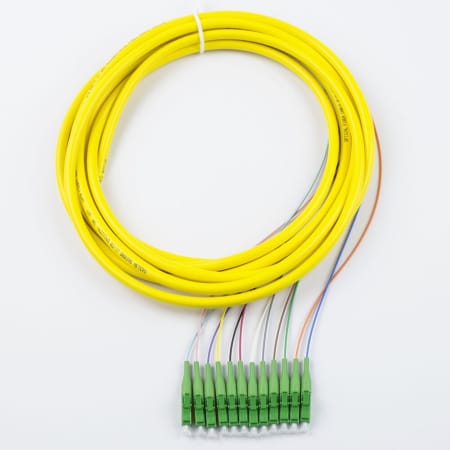

12 Fiber 900um Pigtail, 9/125 Singlemode Simplex LC APC 3m

t12-la119-bl-srd-003m

MFR #:T12-LA119-BL-SRD-003M

GCG #:T12-LA119-BL-SRD-003M

MFR #:T12-LA119-BL-SRD-003M

GCG #:T12-LA119-BL-SRD-003M

Call for Availability

Min Qty:1

  |

Qty Increment:1

Commonly used in CATV, FTTX, telecommunication networks, and premise installations 12 Fiber pack, Singlemode 9/125/900μm tight-buffered optical fiber. LC, SC, or ST connectors with UPC or APC polished types pre-installed on one end and a length of exposed fiber at the other end.  Standard 3 meter length.  The end of the pigtail is ready to be stripped and fusion or mechanically spliced to a single fiber of a multi-fiber trunk. Designed for high fiber count splicing applications. Color coded to TIA-598-A industry standards for ease of use (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua).
Request Quotemore info

Min Qty:1

  |

Qty Increment:1

Commonly used in CATV, FTTX, telecommunication networks, and premise installations 12 Fiber pack, Singlemode 9/125/900μm tight-buffered optical fiber. LC, SC, or ST connectors with UPC or APC polished types pre-installed on one end and a length of exposed fiber at the other end.  Standard 3 meter length.  The end of the pigtail is ready to be stripped and fusion or mechanically spliced to a single fiber of a multi-fiber trunk. Designed for high fiber count splicing applications. Color coded to TIA-598-A industry standards for ease of use (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua).

Attributes

Environmental Properties
Temperature Rating (Max)70°C
Temperature Rating (Min)-20°C
General Information
ManufacturerLynn
Design & Construction
Connector TypeLC APC
Jacket MaterialOFNR
Fiber Count12
Fiber TypeSinglemode
Electrical Properties
TUV CertifiedYes
Physical Properties
Weight5.6
