GameChanger CMP 1000' box, Black
.mp4/default.jpg)
Spec #:CMP
MFR #:258300304
GCG #:258300304
Spec #:CMP
MFR #:258300304
GCG #:258300304
Call for Availability
Min Qty:1
|Qty Increment:1

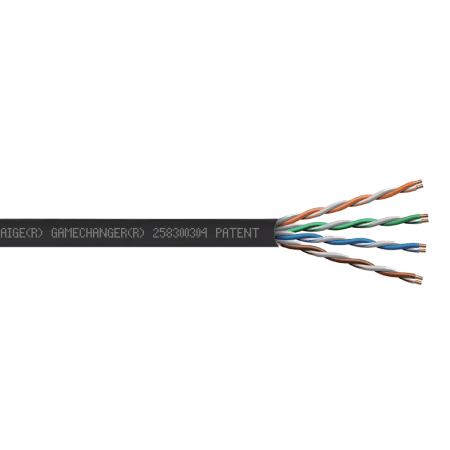

GameChanger Plenum Rated 22/4pr Solid type CMP Black jacket 1000' box. Patented GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).
Request Quote
Min Qty:1
|Qty Increment:1
GameChanger Plenum Rated 22/4pr Solid type CMP Black jacket 1000' box. Patented GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).
- Attributes
Attributes
Environmental Properties
Riser/PlenumPlenum
Temperature Rating (Max)+75°C
Indoor/OutdoorIndoor
Temperature Rating (Range)-20°C to +75°C
Temperature Rating (Min)-20°C
General Information
ManufacturerPAIGE
Design & Construction
Conductor MaterialBare Copper
Conductor Count8
Gauge Size22AWG
Jacket MaterialPVC
Jacket ColorBlack
Cable Diameter Max (in)0.248
Solid/StrandedSolid
Shielded/UnshieldedUnshielded
Electrical Properties
Insulation MaterialFEP
UL RatingUL Type CMP
Voltage Rating300V
RoHS CompliantYes
Physical Properties
Bend Radius (in)2.48
Weight per Foot0.032
