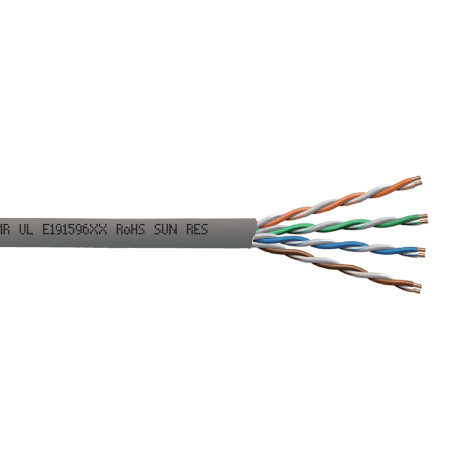

GameChanger CMR 1000' box, Gray
.mp4/default.jpg)
Spec #:CMR
MFR #:258310311
GCG #:258310311
Spec #:CMR
MFR #:258310311
GCG #:258310311
Call for Availability
Min Qty:1
|Qty Increment:1
GameChanger Riser Rated 22/4pr Solid type CMR Gray jacket 1000' box. Patented GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).
Request Quote
Min Qty:1
|Qty Increment:1
GameChanger Riser Rated 22/4pr Solid type CMR Gray jacket 1000' box. Patented GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).
- Attributes
Attributes
Environmental Properties
Riser/PlenumRiser
Temperature Rating (Max)+75°C
Indoor/OutdoorIndoor
Temperature Rating (Range)-20°C to +75°C
Temperature Rating (Min)-20°C
General Information
ManufacturerPAIGE
Design & Construction
Conductor MaterialBare Copper
Conductor Count8
Gauge Size22AWG
Jacket MaterialPVC
Jacket ColorGray
Cable Diameter Max (in)0.238
Solid/StrandedSolid
Shielded/UnshieldedUnshielded
Electrical Properties
Insulation MaterialFEP
UL RatingUL Type CMR
Voltage Rating300V
RoHS CompliantYes
Physical Properties
Bend Radius (in)2.38
Weight per Foot0.029
