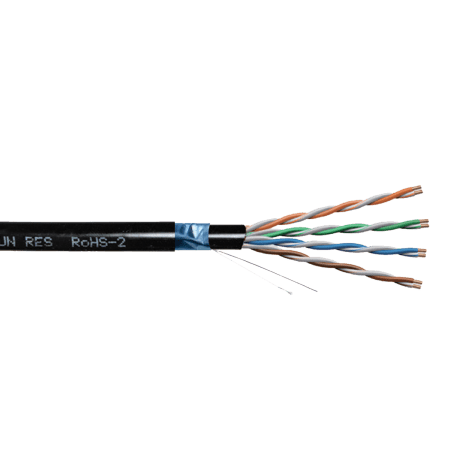

GameChanger OSP F/UTP 1000' Reel, Black
.mp4/default.jpg)
Spec #:CM-ST1 600v
MFR #:258340804
GCG #:258340804
Spec #:CM-ST1 600v
MFR #:258340804
GCG #:258340804
Call for Availability
Min Qty:1
|Qty Increment:1
GameChanger Outside Plant (OSP) Shielded, dual jacketed cable with shield between jackets, gel filled, 600v rated 22/4pr Solid type CM-ST1 Black jacket 1000' reel. Patented GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).
Request Quote
Min Qty:1
|Qty Increment:1
GameChanger Outside Plant (OSP) Shielded, dual jacketed cable with shield between jackets, gel filled, 600v rated 22/4pr Solid type CM-ST1 Black jacket 1000' reel. Patented GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).
- Attributes
- Documents
Attributes
Environmental Properties
Temperature Rating (Max)+80°C
Indoor/OutdoorOutdoor
Outdoor RatedYes
Temperature Rating (Range)-20°C to +80°C
Temperature Rating (Min)-20°C
General Information
ManufacturerPAIGE
Design & Construction
Conductor MaterialBare Copper
Conductor Count8
Gauge Size22AWG
Jacket MaterialFRPE
Jacket ColorBlack
Cable Diameter Max (in)0.38
Solid/StrandedSolid
Shielded/UnshieldedShielded
Shield TypeFoil
Electrical Properties
Insulation MaterialFEP
UL RatingUL Type CM-ST1
Voltage Rating600V
RoHS CompliantYes
Physical Properties
Bend Radius (in)3.8
Weight per Foot0.063
