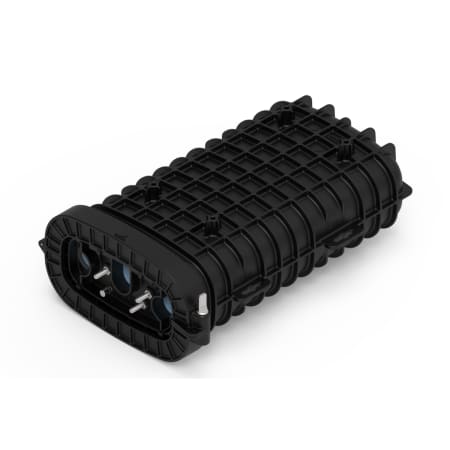

COYOTE® ONE DOME CLOSURE - UNIVERSAL - MASS FUSION OR SINGLE FUSION
MFR #:COY1U-000
GCG #:COY1U-000
MFR #:COY1U-000
GCG #:COY1U-000
Min Qty:1
|Qty Increment:1
The COYOTE ONE Dome Closure is designed with PLP’s patented segmented end plate which allows independent access to each cable port. The dome design with hinged collar speeds assembly and simplifies re-entry. When combined with PLP’s versatile grommet system and LITE-GRIP® splice trays, the COYOTE ONE Dome has the capacity to support 120 single fusion or a maximum capacity of 288 mass fusion splices. Compact size and a full line of accessories make this new closure the ONE to choose. COYOTE ONE with Universal Organizer – Includes (2) 2-Hole Grommets 0.42" – 0.60" (10.7 mm – 15.2 mm), (1) 6-Hole Grommet 0.125" – 0.250" (3.2 mm – 6.4 mm) & Flat Drop Cable, and (3) Cable Restraint Brackets with Associated Hardware
Request Quote
Min Qty:1
|Qty Increment:1
The COYOTE ONE Dome Closure is designed with PLP’s patented segmented end plate which allows independent access to each cable port. The dome design with hinged collar speeds assembly and simplifies re-entry. When combined with PLP’s versatile grommet system and LITE-GRIP® splice trays, the COYOTE ONE Dome has the capacity to support 120 single fusion or a maximum capacity of 288 mass fusion splices. Compact size and a full line of accessories make this new closure the ONE to choose. COYOTE ONE with Universal Organizer – Includes (2) 2-Hole Grommets 0.42" – 0.60" (10.7 mm – 15.2 mm), (1) 6-Hole Grommet 0.125" – 0.250" (3.2 mm – 6.4 mm) & Flat Drop Cable, and (3) Cable Restraint Brackets with Associated Hardware
- Attributes
- Features
- Specifications
Attributes
General Information
ManufacturerPLP
Design & Construction
MaterialEngineered Plastic
Physical Properties
Length16 IN
Features
- Hinged collar system allows for quick reentry. No special tools required
- Integrated air valve for flash testing closure seal
- Independently tested in accordance to Telcordia GR-771-CORE
- Direct buried, manhole, aerial or pole/wall mount
- Flexible grommet sealing system supports a wide range and quantity of flat or round cable profiles.
- Ideal for FTTH deployment and back-haul networks
Specifications
- Size: 16" L x 10" W x 5.7" H
- Max. Splice Capacity: (120) Single Fusion (80809958 Tray), (288) Mass Fusion (LGSTR144 Tray)
- Configuration: Butt/Expressed Splice
- Port Quantity: 3
- Ground Stud Quantity: 3
