04-061-85 Superior Essex BDW A
MFR #:04-061-85
GCG #:04-061-85
MFR #:04-061-85
GCG #:04-061-85
Min Qty:1
  | ÂQty Increment:1

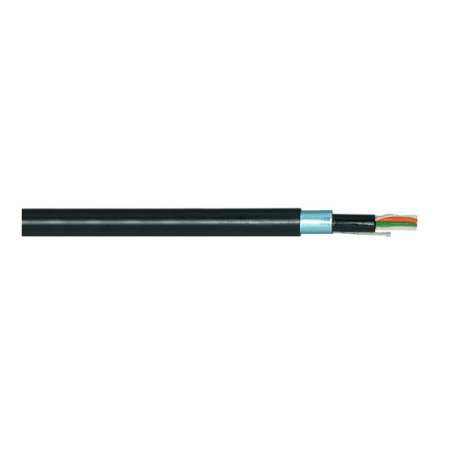

BDW A is a filled, double-jacketed buried wire intended for direct burial
applications. Applications include distribution circuits and service
entrance wires. BDW A is designed to withstand installation stresses.
BDW A is filled with an ETPR compound, which completely coats each
insulated conductor and fills the air space between conductors. BDW A
is recommended for non-gopher areas. Each conductor is insulated with
solid polyolefin in distinctive colors. The insulation of the tip conductor
is marked with a stripe of the mating ring insulation color to reduce the
possibility of splitting pairs during installation.
Request Quote
Min Qty:1
  | ÂQty Increment:1
BDW A is a filled, double-jacketed buried wire intended for direct burial
applications. Applications include distribution circuits and service
entrance wires. BDW A is designed to withstand installation stresses.
BDW A is filled with an ETPR compound, which completely coats each
insulated conductor and fills the air space between conductors. BDW A
is recommended for non-gopher areas. Each conductor is insulated with
solid polyolefin in distinctive colors. The insulation of the tip conductor
is marked with a stripe of the mating ring insulation color to reduce the
possibility of splitting pairs during installation.
- Attributes
Attributes
General Information
BrandSuperior Essex
ManufacturerSuperior Essex
PackagingReel
Product CategoryOSP Copper
StandardsANSI/ICEA S-86-634-2011, RoHS
Design & Construction
ColorBlack
MaterialPE
EnvironmentOutdoor
Water BlockGel
Electrical Properties
Insulation MaterialPolyolefin
