10-212-35 Superior Essex Integrated Messenger Wire IM/F, IM/H and IM/G
MFR #:10-212-35
GCG #:10-212-35
MFR #:10-212-35
GCG #:10-212-35
Min Qty:1
|Qty Increment:1

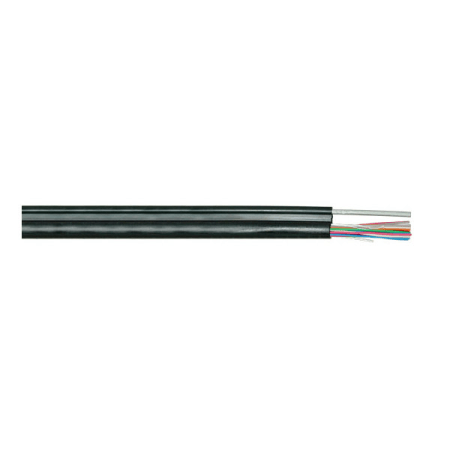

IM/F, IM/H and IM/G aerial service wire in 2, 3, 6 and 12-pair is self
supporting. The conductors are laid parallel to an (F) 0.083 inch, (H)
0.109 inch, or (G) 0.095 inch solid extra-strength steel support wire.
Both the conductors and support wire are jacketed in an integral “figure
8” configuration. This product permits fast, economical installation
from aerial distribution cable terminals to building entrance protectors
or network interface units on the subscriber’s premises. The fully
color coded core expedites splicing and terminating procedures. A
black, fire retardant, polyvinyl chloride jacket provides a tough flexible
protective covering that withstands exposure to sunlight, atmospheric
temperatures and stresses encountered in standard installations. The
steel support wire is jacketed in an integral extrusion with the core.
Request Quote
Min Qty:1
|Qty Increment:1
IM/F, IM/H and IM/G aerial service wire in 2, 3, 6 and 12-pair is self
supporting. The conductors are laid parallel to an (F) 0.083 inch, (H)
0.109 inch, or (G) 0.095 inch solid extra-strength steel support wire.
Both the conductors and support wire are jacketed in an integral “figure
8” configuration. This product permits fast, economical installation
from aerial distribution cable terminals to building entrance protectors
or network interface units on the subscriber’s premises. The fully
color coded core expedites splicing and terminating procedures. A
black, fire retardant, polyvinyl chloride jacket provides a tough flexible
protective covering that withstands exposure to sunlight, atmospheric
temperatures and stresses encountered in standard installations. The
steel support wire is jacketed in an integral extrusion with the core.
- Attributes
Attributes
General Information
BrandSuperior Essex
ManufacturerSuperior Essex
PackagingReel
Product CategoryOSP Copper
StandardsTelcordia GR-3163-CORE, ANSI/ICEA s-89-648-20011, RoHS
Design & Construction
ColorBlack
MaterialPE
EnvironmentOutdoor
Water BlockGel
Electrical Properties
Insulation MaterialPolyolefin
