04-112-27 Superior Essex Gopic -F RDUP PE-39
MFR #:18-241-13
GCG #:18-241-13
MFR #:18-241-13
GCG #:18-241-13
Min Qty:1
|Qty Increment:1

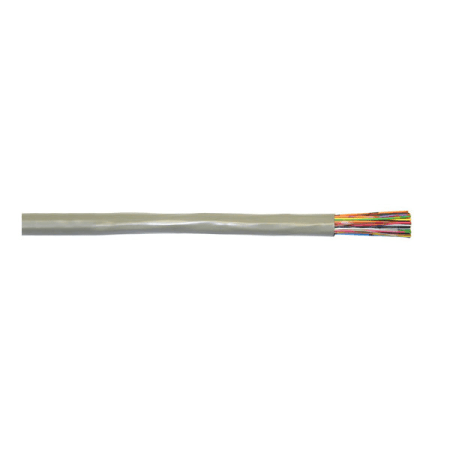

The Superior Essex Category 3 Station Wires CMR/CMX Outdoor cable is specifically designed for outdoor, indoor, or a combination of both applications. CMX Outdoor cables extend the run between the Network Interface Unit and the point of entry into the interior of a residence or a premise. Their twisted pair construction is small and lightweight. These Category 3 (CAT 3) cables have been tested and listed as UL® 444 Outdoor compliant, requiring the cable to resist 300 hours of UV and heat. In addition, the CMR listing allows the cable to be used in riser spaces per UL 1666, eliminating the need to transition to fire resistant cables. UV-blocking compounds also aid in protecting the cable from light. Two levels of Outdoor Protection are available: CMR/CMX Outdoor and Extreme CMR/CMX Outdoor which meets the -40°C anvil test.
Request Quote
Min Qty:1
|Qty Increment:1
The Superior Essex Category 3 Station Wires CMR/CMX Outdoor cable is specifically designed for outdoor, indoor, or a combination of both applications. CMX Outdoor cables extend the run between the Network Interface Unit and the point of entry into the interior of a residence or a premise. Their twisted pair construction is small and lightweight. These Category 3 (CAT 3) cables have been tested and listed as UL® 444 Outdoor compliant, requiring the cable to resist 300 hours of UV and heat. In addition, the CMR listing allows the cable to be used in riser spaces per UL 1666, eliminating the need to transition to fire resistant cables. UV-blocking compounds also aid in protecting the cable from light. Two levels of Outdoor Protection are available: CMR/CMX Outdoor and Extreme CMR/CMX Outdoor which meets the -40°C anvil test.
- Attributes
- Features
Attributes
Environmental Properties
Riser/PlenumRiser
General Information
BrandSuperior Essex
ManufacturerSuperior Essex
PackagingPopbox
Product CategoryOSP Fiber
Design & Construction
ColorBeige
Cable ConfigurationU/UTP
MaterialPVC
EnvironmentIndoor
Electrical Properties
Cable Type3
Insulation MaterialPE
Features
- CMR and CMP constructions use extremely flexible, FR-PVC jacket
- Jacket color options
- Band marked or striped insulated conductors
