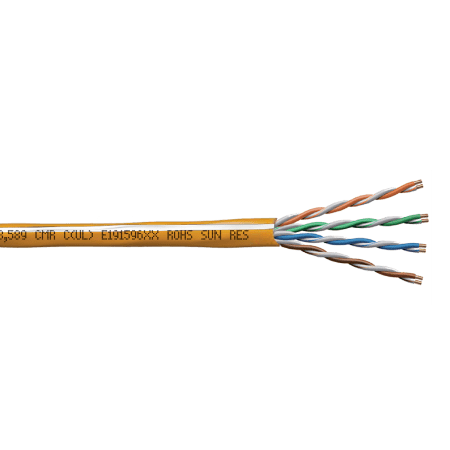

GameChanger CMR 1000' box, Yellow with White Stripe
.mp4/default.jpg)
Spec #:CMR
MFR #:258310333
GCG #:258310333
Spec #:CMR
MFR #:258310333
GCG #:258310333
Call for Availability
Min Qty:1
|Qty Increment:1
GameChanger Riser Rated 22/4pr Solid type CMR Yellow jacket with white stripe 1000' box. Patented GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).
Request Quote
Min Qty:1
|Qty Increment:1
GameChanger Riser Rated 22/4pr Solid type CMR Yellow jacket with white stripe 1000' box. Patented GameChanger Cable can deliver 2.5Gbps and 100W PoE up to 656 feet (200m) or if you need to go farther, GameChanger Cable can deliver 10Mbps and 100W PoE up to 850 feet (259m).
- Attributes
- Documents
Attributes
Environmental Properties
Temperature Rating (Max)+75°C
Temperature Rating (Min)-20°C
Riser/PlenumRiser
Indoor/OutdoorIndoor
Temperature Rating (Range)-20°C to +75°C
General Information
ManufacturerPAIGE
Design & Construction
Conductor Count8
Conductor MaterialBare Copper
Jacket ColorYellow w/White Stripe
Gauge Size22AWG
Jacket MaterialPVC
Cable Diameter Max (in)0.238
Solid/StrandedSolid
Shielded/UnshieldedUnshielded
Electrical Properties
Insulation MaterialFEP
Voltage Rating300V
UL RatingUL Type CMR
RoHS CompliantYes
Physical Properties
Bend Radius (in)2.38
Weight per Foot0.029
