78-11A-9R Superior Essex Coax RG-6, Tri-Shield 70%
MFR #:78-11A-9R
GCG #:78-11A-9R
MFR #:78-11A-9R
GCG #:78-11A-9R
Min Qty:1
|Qty Increment:1

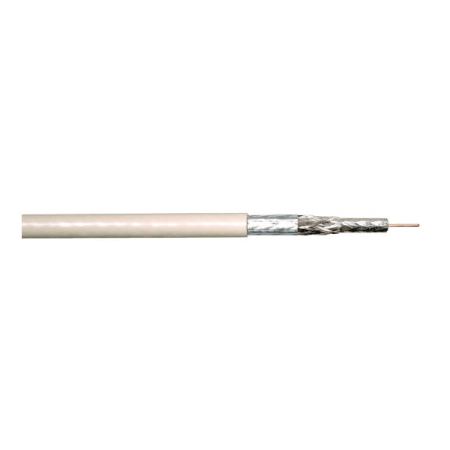

Superior Essex RG-6 Tri-Shield 70% braided coaxial cables exceed the requirements specified in ANSI/SCTE 74-2003. The shielding consists of an inner aluminum/polyester foil bonded to the insulation, an aluminum 34 AWG braid, and an outer aluminum/polyester foil. This RG-6 Tri-Shield will support such technologies as extended bandwidth satellite service, high definition TV signals, CATV and two-way cable modems.
Request Quote
Min Qty:1
|Qty Increment:1
Superior Essex RG-6 Tri-Shield 70% braided coaxial cables exceed the requirements specified in ANSI/SCTE 74-2003. The shielding consists of an inner aluminum/polyester foil bonded to the insulation, an aluminum 34 AWG braid, and an outer aluminum/polyester foil. This RG-6 Tri-Shield will support such technologies as extended bandwidth satellite service, high definition TV signals, CATV and two-way cable modems.
- Attributes
- Features
Attributes
General Information
BrandSuperior Essex
ManufacturerSuperior Essex
PackagingReel in the Box
Product CategoryPremises Copper
StandardsUL 444, ANSI/SCTE 74-2003, RoHS
Design & Construction
ColorWhite
Cable ConfigurationTRI 70%
MaterialPVC
EnvironmentIndoor
Gauge Size18 AWG
Electrical Properties
Cable TypeRG6
Features
- RG-6 (18 AWG copper clad steel center conductor)
- Available in CM Outdoor (60°C rated jacket) or CMR (75°C rated jacket)
- Tri-Shield consists of inner aluminum/polyester foil, aluminum braid, outer aluminum/polyester foil
- Bonded inner foil
- 100% coverage over the 70% (34 AWG aluminum) braiding
- Reel-in-a-Box design
- White or black outer jacket (UV rated for exterior use)
