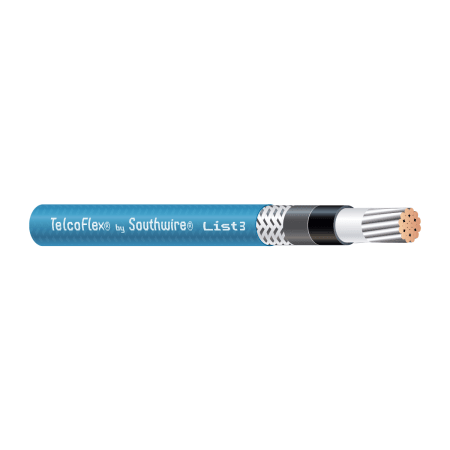

1/0 TelcoFlex® List 3 Blue

407405786

Spec #:41014

MFR #:56966401

GCG #:407405786

Spec #:41014

MFR #:56966401

GCG #:407405786

Min Qty:1

  |

Qty Increment:1

Southwire®
Southwire®
Limited smoke, non-halogenated power cable insulated with TelcoHyde® 5221 with an overall flame retardant saturated braid. UL listed Type RHH, FT4-ST1 in accordance with the National Electrical Code. Product is for use in Central Office, CATV Head End, Data Center and Cell Tower applications. Cable is suitable for UL “CT USE” (Cable Tray rated) in sizes 1/0 AWG and larger.
Request Quotemore info

Min Qty:1

  |

Qty Increment:1

Southwire®
Southwire®
Limited smoke, non-halogenated power cable insulated with TelcoHyde® 5221 with an overall flame retardant saturated braid. UL listed Type RHH, FT4-ST1 in accordance with the National Electrical Code. Product is for use in Central Office, CATV Head End, Data Center and Cell Tower applications. Cable is suitable for UL “CT USE” (Cable Tray rated) in sizes 1/0 AWG and larger.

Attributes

Environmental Properties
Fire-Rated FT4Yes
Temperature Rating (Max)105°C
General Information
ManufacturerSouthwire
Design & Construction
ClassClass B Stranding
Conductor MaterialTinned Copper
Gauge Size1/0
TypeList 3
Jacket MaterialTelcoHyde® 5221
Jacket ColorBlue
Cable Diameter Max (in)0.606
Solid/StrandedStranded
Stranding19
Electrical Properties
CSA ApprovedYes
Insulation MaterialLSZH, RHH TelcoHyde 5221, 105°C Dry, 60°C Wet
UL RatingUL 44 Type RHH, FT4-ST1, VW-1, UL 2731
Voltage Rating600V
Physical Properties
Bend Radius (in)5
Cable Weight per Foot0.44
Conductor TypeStranded
Weight per Foot0.44
