Burndy YAE12N2BOX
MFR #:YAE12N2BOX
GCG #:YAE12N2BOX
UPC #:781810563922
MFR #:YAE12N2BOX
GCG #:YAE12N2BOX
UPC #:781810563922
Call for Availability
Min Qty:1
|Qty Increment:1

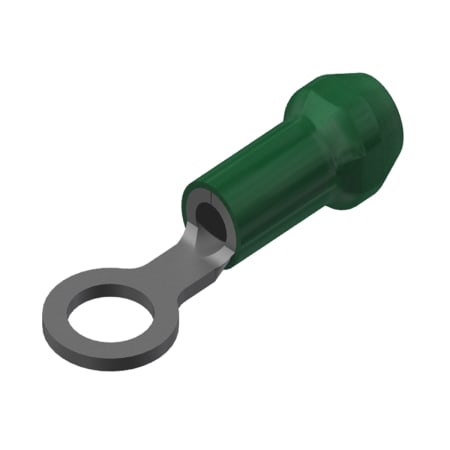

Copper Lug, Ring Tongue, 1 Hole w/ Inspection Hole, 14-12 AWG, 1/4" Stud, Insulated, Short Barrel, Tin Plated, 600 Volts Max.
Request Quote
Min Qty:1
|Qty Increment:1
Copper Lug, Ring Tongue, 1 Hole w/ Inspection Hole, 14-12 AWG, 1/4" Stud, Insulated, Short Barrel, Tin Plated, 600 Volts Max.
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleShrouded
Barrel TypeStandard
MaterialCopper
Gauge Size10 AWG, 12 AWG, 14 AWG
TypeYAE-N
Number of Holes1
Stud Size1/4
Tongue TypeRing
Electrical Properties
Cable TypeYAE-N
CSA ApprovedYes
UL RatingYes
Physical Properties
Weight0.005 lb
