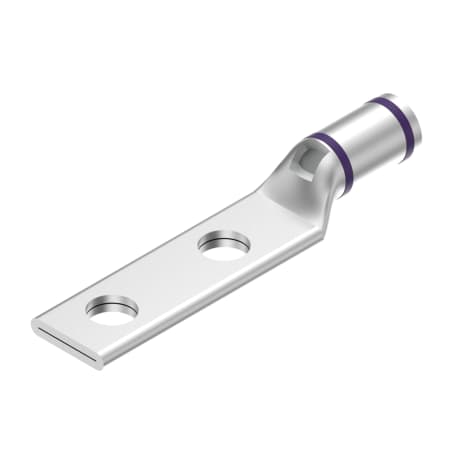

Burndy YAV28L2TC38FX
MFR #:YAV28L2TC38FX
GCG #:YAV28L2TC38FX
UPC #:781810021873
MFR #:YAV28L2TC38FX
GCG #:YAV28L2TC38FX
UPC #:781810021873
In Stock
Min Qty:1
  | ÂQty Increment:1
4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Purple Color Code, 15 Die Index
$7.46Â /Â EACH
Min Qty:1
  | ÂQty Increment:1
4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Purple Color Code, 15 Die Index
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleChamfered;Skived
Barrel TypeStandard
MaterialCopper
Gauge Size4/0
TypeStandard Barrel, Tin Plated
Die Index15
Number of Holes2
Stud Spacing1.00 in
Tongue AngleStraight
Tongue TypeStandard
Electrical Properties
Cable TypeStandard Barrel, Tin Plated
CSA ApprovedYes
UL RatingYes
Physical Properties
Weight0.17 lb
