Burndy YAZ282TC38
MFR #:YAZ282TC38
GCG #:YAZ282TC38
UPC #:781810065433
MFR #:YAZ282TC38
GCG #:YAZ282TC38
UPC #:781810065433
In Stock
Min Qty:1
|Qty Increment:1

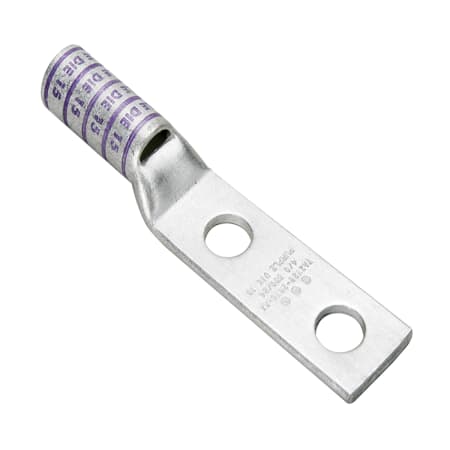

4/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Purple Color Code, 15 Die Index
Request Quote
Min Qty:1
|Qty Increment:1
4/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Purple Color Code, 15 Die Index
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleSkived
Barrel TypeLong
MaterialCopper
Gauge Size4/0
TypeLong Barrel, Skive, Tin Plated
Die Index15
Number of Holes2
Stud Size3/8
Stud Spacing1.00 in
Tongue AngleStraight
Tongue TypeStandard
Electrical Properties
Cable TypeLong Barrel, Skive, Tin Plated
CSA ApprovedYes
UL RatingYes
Physical Properties
Weight0.167 lb
