Burndy YAZV4C2TC14E2FX
MFR #:YAZV4C2TC14E2FX
GCG #:YAZV4C2TC14E2FX
UPC #:781810228203
MFR #:YAZV4C2TC14E2FX
GCG #:YAZV4C2TC14E2FX
UPC #:781810228203
Low Stock
Min Qty:1
|Qty Increment:1

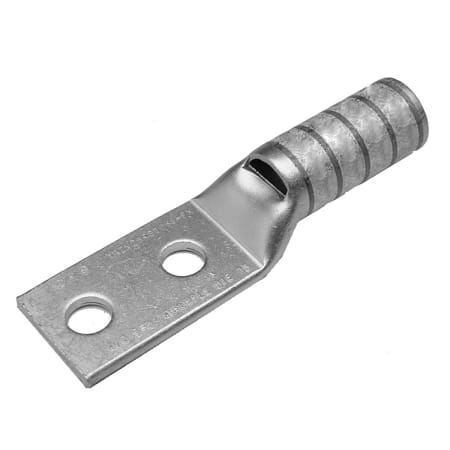

4 Flex G,H,I,K,M,DLO, 4 AWG CU, Two Hole, 1/4 Stud Size, 3/4 Hole Spacing, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Gray Color Code, 8 or 346 Die Index
Request Quote
Min Qty:1
|Qty Increment:1
4 Flex G,H,I,K,M,DLO, 4 AWG CU, Two Hole, 1/4 Stud Size, 3/4 Hole Spacing, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Gray Color Code, 8 or 346 Die Index
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleSkived
Barrel TypeLong
MaterialCopper
Gauge Size4 AWG
TypeLong Barrel, Skive
Die Index8;346
Number of Holes2
Stud Spacing0.75 in
Tongue AngleStraight
Electrical Properties
CSA ApprovedYes
UL RatingYes
Physical Properties
Weight0.043 lb
