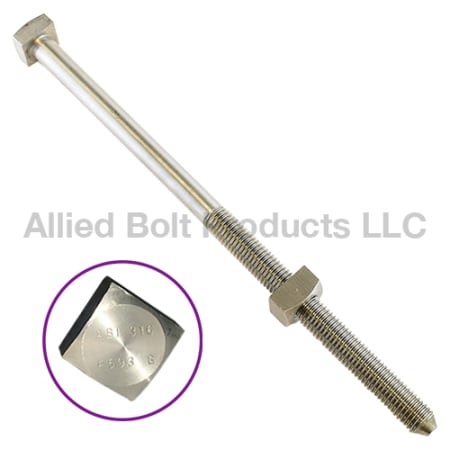

5/8" X 16" Square Head Machine Bolt w/Nut Stainless Steel
MFR #:8228SS
GCG #:8228SS
MFR #:8228SS
GCG #:8228SS
Min Qty:1
  | ÂQty Increment:1
5/8" X 16" Square Head Machine Bolt with Nut 316 Stainless Steel
Request Quote
Min Qty:1
  | ÂQty Increment:1
5/8" X 16" Square Head Machine Bolt with Nut 316 Stainless Steel
- Attributes
- Features
Attributes
General Information
ManufacturerAllied Bolt
Design & Construction
Material316 Stainless Steel
Size5/8"
Physical Properties
Length16"
Features
- Used to secure cable suspension clamps and other poleline brackets and clamps.
- Each square head bolt is supplied with one attached regular square nuts.
- Bolt provided with cone point to ease starting.
- Bolt head marking (ABI) appears on head of each bolt and is registered with the U.S. Patent Office per the Fastener Insignia Act.
- A minimum of six inches of thread per bolt.
- Minimum tensile strength: 28,390 lbf.
- Recommended torque value: 187.8 ft lb
- Minimum thread length is 6".
