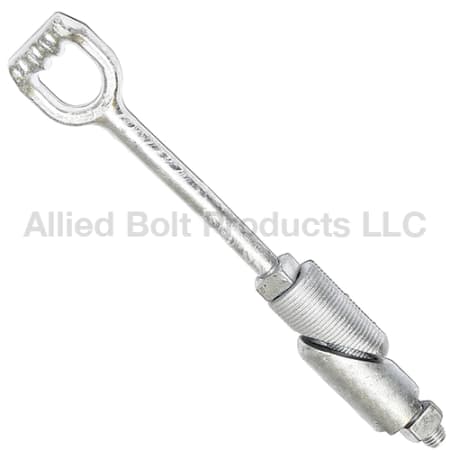

1" X 72" Expanding Rock Anchor
MFR #:55510
GCG #:55510
MFR #:55510
GCG #:55510
Min Qty:1
  | ÂQty Increment:1
1" X 72" Expanding Rock Anchor
Request Quote
Min Qty:1
  | ÂQty Increment:1
1" X 72" Expanding Rock Anchor
- Attributes
- Features
Attributes
General Information
ManufacturerAllied Bolt
Design & Construction
MaterialGalvanized
Size1"
Physical Properties
Length72"
Features
- Used as a heavy-duty anchor in solid rock.
- Anchor consists of two Malleable castings and a Triple Eye Anchor Rod.
- All components are hot dip galvanized to meet ASTM Specification A153.
- To install anchor, drill a 12" deep hole in solid rock, put anchor in hole, turn rod until anchor expands and wedges in the hole.
- Anchor diameter is 2-1/4".
- Anchor size expanded is 3-1/8".
- Hole diameter is 2-3/8".
- The harder the pull on the rod, the tighter it wedges into the rock.
- Ultimate strength is 36,000 lbs.
