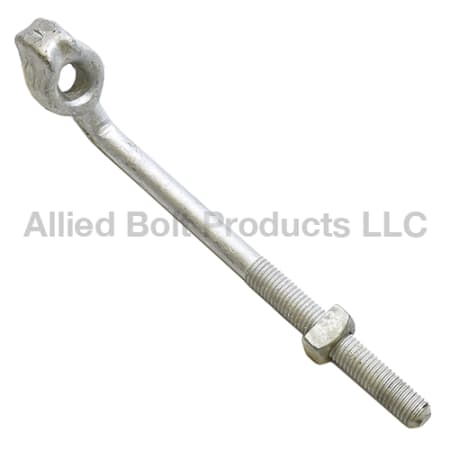

3/4" X 12" Angled Guy Bolt
MFR #:5825
GCG #:5825
MFR #:5825
GCG #:5825
Min Qty:1
|Qty Increment:1
3/4" X 12" Angled Guy Bolt
Request Quote
Min Qty:1
|Qty Increment:1
3/4" X 12" Angled Guy Bolt
- Attributes
- Features
Attributes
General Information
ManufacturerAllied Bolt
Design & Construction
MaterialGalvanized
Size3/4"
Physical Properties
Length12"
Features
- Used for dead-ending and attaching guy wires to poles and crossarms.
- Manufacture's marking (ABI) appears on unthreaded section of each bolt and is registered with the U.S. Patent Office per the Fastener Insignia Act.
- Allied Bolt marking (ABI) appears on each bolt.
- Supplied with cone point to ease assembly with nut.
- Supplied with an attached square nut.
- Hot dip galvanized to meet ASTM Specifications F2329.
- Minimum thread length is 6".
- Recommended torque value: 130 ft lb.
- Minimum Tensile Strength: 20,050 lbf.
