Burndy YAV10BOX
MFR #:YAV10BOX
GCG #:YAV10BOX
UPC #:781810541500
MFR #:YAV10BOX
GCG #:YAV10BOX
UPC #:781810541500
In Stock
Min Qty:1
|Qty Increment:1

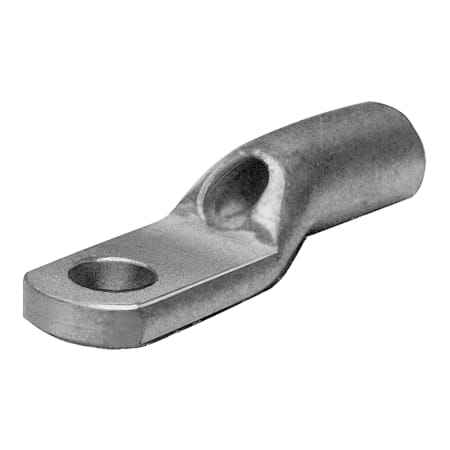

14-10 AWG - 12-10 Sol CU, One Hole, #8-#10 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV
Request Quote
Min Qty:1
|Qty Increment:1
14-10 AWG - 12-10 Sol CU, One Hole, #8-#10 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleChamfered
Barrel TypeStandard
MaterialCopper
Gauge Size10 AWG, 12 AWG, 14 AWG
TypeRing Tongue
Number of Holes1
Stud Size#8;#10
Tongue AngleStraight
Tongue TypeRing
Electrical Properties
Cable TypeRing Tongue
CSA ApprovedYes
UL RatingYes
Physical Properties
Weight0.006 lb
