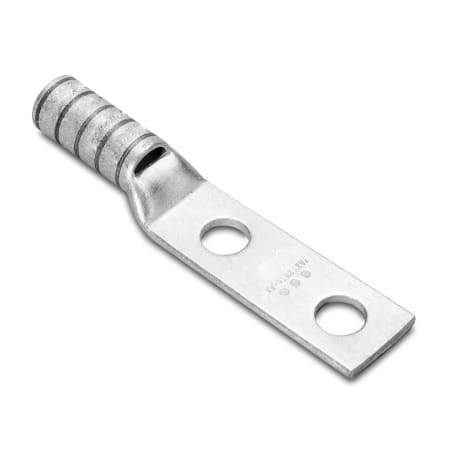

Burndy YAV6CL2TC14FX
MFR #:YAV6CL2TC14FX
GCG #:YAV6CL2TC14FX
UPC #:781810022375
MFR #:YAV6CL2TC14FX
GCG #:YAV6CL2TC14FX
UPC #:781810022375
Call For Availability
Min Qty:1
  | ÂQty Increment:1
6 Flex G,H,I,K,M,DLO, 6 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 7 or 374 Die Index
Request Quote
Min Qty:1
  | ÂQty Increment:1
6 Flex G,H,I,K,M,DLO, 6 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 7 or 374 Die Index
- Attributes
Attributes
General Information
ManufacturerBurndy
Design & Construction
Barrel StyleChamfered;Skived
Barrel TypeStandard
MaterialCopper
Gauge Size6 AWG
TypeStandard Barrel, Tin Plated
Die Index7;374
Number of Holes2
Stud Spacing0.63 in
Tongue AngleStraight
Tongue TypeStandard
Electrical Properties
Cable TypeStandard Barrel, Tin Plated
CSA ApprovedYes
UL RatingYes
Physical Properties
Weight0.022 lb
