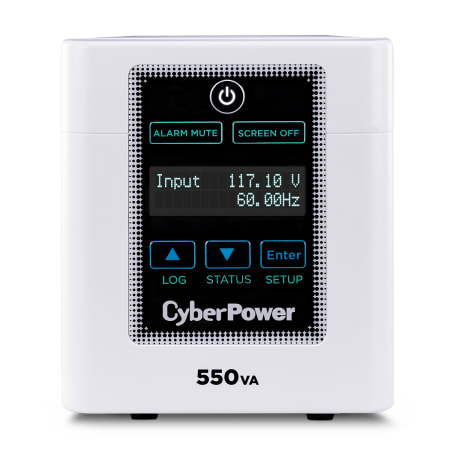

CyberPower M550L Medical UPS Systems
MFR #:M550L
GCG #:M550L
MFR #:M550L
GCG #:M550L
Call for Availability
Min Qty:1
|Qty Increment:1
The CyberPower M550L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M550L has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M550L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.
Request Quote
Min Qty:1
|Qty Increment:1
The CyberPower M550L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M550L has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M550L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.
- Attributes
- Features
Attributes
Performance Details
Operating Temperature32 - 104 °F (0 - 40 °C)
Storage Temperature5 - 113 °F (-15 - 45 °C)
Overload ProtectionInternal Circuitry Limiting
Runtime at Full Load8 min
Runtime at Half Load25 min
Environmental Properties
EnvironmentalRoHS Compliant
General Features
Software (Free Download)PowerPanel® Business
General Information
ManufacturerCyberPower
Extended Warranty OptionWEXT5YR-U2A
Product Warranty3 Year Limited Warranty
Replacement Battery CartridgeRB1270X2E
Design & Construction
Battery TypeSealed Lead-Acid Battery
ColorWhite
Audible AlarmsBattery Mode
Battery Quantity2
HID Compliant USB PortYes
Input Plug TypeNEMA 5-15P-HG
Input Voltage Range90 VAC - 146 VAC
LCDMultifunction LCD
LED IndicatorsPower On
Management CableUSB Cable
Material of ConstructionPlastic
Outlets - Battery & Surge Protected4
Outlets - Total4
Typical Recharge Time8 Hours (0% to 90% charged)
Typical Transfer Time< 10 ms
User Replaceable BatteryYes
Electrical Properties
Input Frequency Range57 Hz - 63 Hz
Nominal Input Voltage120 VAC
Surge Suppression (Joules)1445 J
Watts440 W
Physical Properties
Cord Length6 ft (1.8 m)
Physical Dimensions - (WxHxD) (in.)5.4 x 6.4 x 13.7 (in)
Weight (LBS.)30.1
Features
- Battery Backup Provides power to cover shorter-outages and supplies power long enough for equipment to properly shut down when utility power fails for longer periods of time. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Line Interactive Topology Exists when a UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR) Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
- UL 60601-1 Tested Meets all UL 60601-1 requirements necessary for use in patient-care environments.
- Hospital-Grade Plugs & Outlets Offer an added degree of safety and reliability to the input/output connections of hospital-grade equipment.
- Isolation Transformer Minimizes the current leakage and cumulative shock potential of connected equipment to below 100μA (microamps) and helps to alleviate line noise.
- Sealed LCD Screen Resists dirt, debris and spray, and can withstand repeated cleaning procedures common to patient-care environments.
- Multifunction LCD Panel Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Ultra Quiet Design Minimizes noise during operation for a quieter patient environment.
- Replaceable Batteries Can be quickly accessed and replaced by a qualified technician. Batteries are hot-swappable to eliminate unnecessary downtime.
- PowerPanel® Business Edition Software Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
- Three-Year Warranty CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
