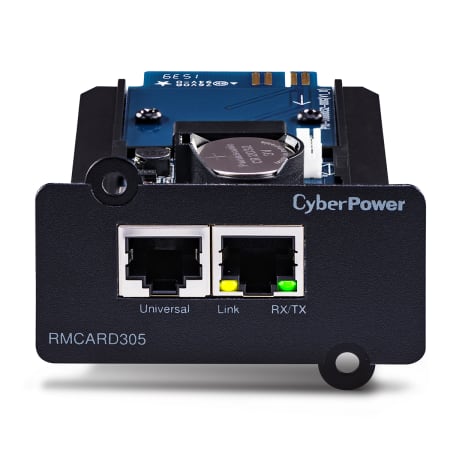

CyberPower RMCARD305 Remote Management Card
MFR #:RMCARD305
GCG #:RMCARD305
MFR #:RMCARD305
GCG #:RMCARD305
Call for Availability
Min Qty:1
|Qty Increment:1
A full-featured network management card, the CyberPower RMCARD305 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD305 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
Request Quote
Min Qty:1
|Qty Increment:1
A full-featured network management card, the CyberPower RMCARD305 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD305 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
- Attributes
- Features
Attributes
Performance Details
Operating Temperature32 - 104 °F (0 - 40 °C)
Storage Temperature14 - 122 °F (-10 - 50 °C)
Environmental Properties
EnvironmentalRoHS Compliant
General Information
ManufacturerCyberPower
Extended Warranty OptionWEXT5YR-ACC1A
Product Warranty3 Year Limited Warranty
Design & Construction
ColorBlack
LED IndicatorsTx/Rx
Network Protection RJ45Ethernet RJ45
SMTPRFC 2821
SMTPSRFC 3207
SNMPv1: RFC 1155, RFC 1156, RFC 1157
SSHv2: RFC 4253, RFC 4254
SSLv3: RFC 6101
Physical Properties
Physical Dimensions - (WxHxD) (in.)2.6 x 1.7 x 5.3 (in)
Weight (LBS.)0.2
Features
- Environmental Sensor Compatibility The optional ENVIROSENSOR connects to the Universal port on the RMCARD305 to monitor ambient temperature and humidity. Notifications are enabled by default and alert thresholds can be easily customized to fit environmental control requirements.
- Remote Management Allows administrators to control and configure the UPS without being onsite via a standard web browser, command line interface (CLI), or network management system (NMS).
- Built-In Automatic Shutdown In conjunction with PowerPanel Business Edition Client, you can protect servers and workstations from data loss due to power failure.
- Offsite Scheduling of UPS and ATS PDU Operation Lets administrators conduct scheduled times for UPS and ATS PDU shutdown, startup, and reboot. Functionality includes event action management, event logging, and automatic event notification.
- Automatic Event Notification Provides immediate updates about power events via Email, SMS, SNMP Traps, or Syslog server.
- Event Logging and Status Records Traces the UPS and ATS PDU operational history, tracking events and input/output power status records.
- Event Action Settings Allows administrators to customize UPS actions in response to power and system events.
- Upgradable Firmware Keep the RMCARD305TAA up to date with the latest firmware version. New firmware releases include new functionality, feature enhancements, and bug fixes. Firmware can be updated via FTP or SCP.
- Upgradable UPS Firmware* Maintain UPS firmware that manages features and functions up to date to. The UPS firmware upgrade is easy to do via the web management interface.
- Three-Year Warranty Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
