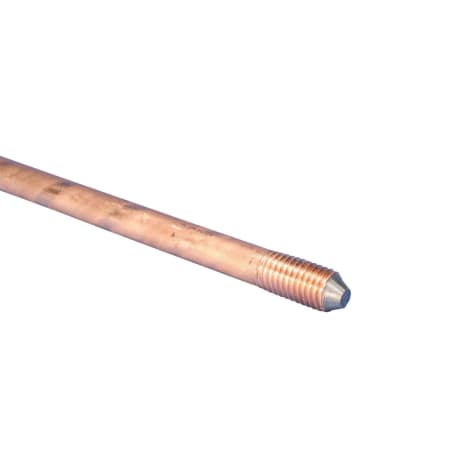

nVent ERICO 631360 Copper-Bonded Ground Rod, Threaded, 1/2" Diameter, 6', 10 mil Plating, 4.2 lb
MFR #:631360
GCG #:631360
MFR #:631360
GCG #:631360
Call for Availability
Min Qty:1
Ā Ā |Ā ĀQty Increment:1
Copper-Bonded Ground Rod, Threaded, 1/2" Diameter, 6', 10 mil Plating, 4.2 lb
Request Quote
Min Qty:1
Ā Ā |Ā ĀQty Increment:1
Copper-Bonded Ground Rod, Threaded, 1/2" Diameter, 6', 10 mil Plating, 4.2 lb
- Attributes
- Features
Attributes
General Information
ManufacturernVent ERICO
Design & Construction
MaterialCopper-Bonded
Size1/2"
Physical Properties
Length6 FT
Weight4.2 LBS.
Features
- Cold-rolled threads with continuous, unbroken grain flows preserve copper coating and are stronger than cut threads
- 99.9% pure electrolytic copper coating
- Molecular bond to nickel-sealed high strength steel core
- Rods have a high carbon steel core and tip that provide superior strength when driving
- Copper coating will not crack when bent or tear when driven
- Minimum copper coating of 10 mils on rods listed to ULĀ® 467
- nVent ERICO name, length, diameter and part number is roll-stamped within 12" (304,8 mm) of chamfered end
- UL logo and control number where applicable stamped on each rod for easy inspection after installation
