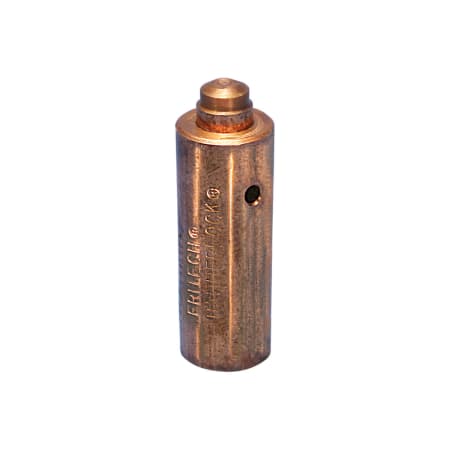

EHL58C1V nVent ERICO Hammerlock Ground Clamp, Copper-bonded, Copper, 5/8" Diameter, #4 Stranded-#2 Stranded, 25 mm² Stranded, 1 Conductors
MFR #:EHL58C1V
GCG #:EHL58C1V
MFR #:EHL58C1V
GCG #:EHL58C1V
Min Qty:1
|Qty Increment:1
nVent ERICO Hammerlock Ground Clamp, Copper-bonded, Copper, 5/8" Diameter, #4 Stranded-#2 Stranded, 25 mm² Stranded, 1 Conductors
Request Quote
Min Qty:1
|Qty Increment:1
nVent ERICO Hammerlock Ground Clamp, Copper-bonded, Copper, 5/8" Diameter, #4 Stranded-#2 Stranded, 25 mm² Stranded, 1 Conductors
- Attributes
- Features
Attributes
General Information
ManufacturernVent ERICO
Design & Construction
MaterialCopper-Bonded
Size5/8"
Physical Properties
Conductor Range#4 Stranded - #2 Stranded
Features
- Irreversible connection with excellent mechanical strength
- Fast and simple installation requires only a hammer
- No special training required
- Low resistance connection
- Provides a visual indication of completed connection
- Allows for “T” or pass-through connections
