110962D01 Superior Essex Dri-Lite® Loose Tube Single Jacket All Dielectric
MFR #:110962D01
GCG #:110962D01
MFR #:110962D01
GCG #:110962D01
Call for Availability
Min Qty:1
|Qty Increment:1
CUT CUSTOMIZATION: This product can be cut in various lengths. Cut selections can be made in the cart.

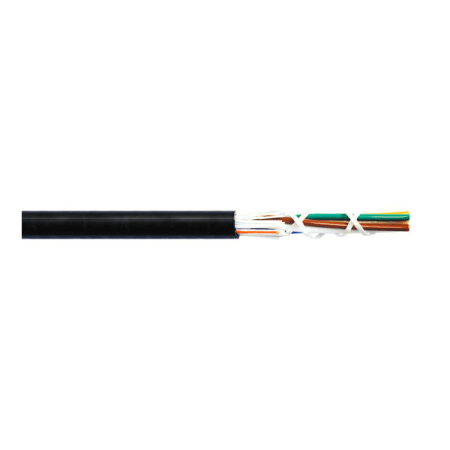

Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The rugged loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape, then encased with a black jacket. A rip cord is included under the jacket for ease of entry.
Request Quote
Add Cut Lengths in Cart
Add cut lengths in cart
Min Qty:1
|Qty Increment:1
CUT CUSTOMIZATION: This product can be cut in various lengths. Cut selections can be made in the cart.
Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The rugged loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape, then encased with a black jacket. A rip cord is included under the jacket for ease of entry.
- Attributes
- Features
Attributes
General Information
BrandSeries 11D
ManufacturerSuperior Essex
PackagingWooden Reel
Product CategoryOSP Fiber
StandardsTelcordia® GR-20-CORE
Design & Construction
ColorBlack
Cable ConfigurationStranded Loose Tube
MaterialMDPE
EnvironmentOutdoor
Water BlockDri-Lite
Features
- Available with up to 432-fiber
- Multiple fiber types including composites
- Central strength members available in metallic or dielectric
- Dry (SAP) core standard
- Standard tube size for all fiber counts
- Gel-free tubes
