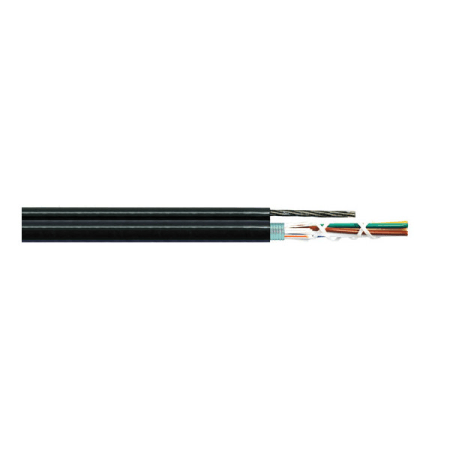

1204821M1 Superior Essex Loose Tube Single Jacket Single Armor Self Support
MFR #:1204821M1
GCG #:1204821M1
MFR #:1204821M1
GCG #:1204821M1
Min Qty:1
|Qty Increment:1
Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) applications. Loose tube self support cables are designed for use in aerial applications as an alternative to lashing. These cables reduce installation time and costs. Superior Essex offers self support cables for spans up to 700 feet. The loose tube design offers reliable transmission performance over a broad temperature range. The rugged loose tube design features optical fibers placed inside PFM gel-filled buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL) and wrapped with flexible strength members covered with a water-blocking tape. A corrugated steel armor is applied and then encased in a black jacket with an integrated EHS steel messenger. Rip cords are included under the armor for ease of entry.
Request Quote
Min Qty:1
|Qty Increment:1
Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) applications. Loose tube self support cables are designed for use in aerial applications as an alternative to lashing. These cables reduce installation time and costs. Superior Essex offers self support cables for spans up to 700 feet. The loose tube design offers reliable transmission performance over a broad temperature range. The rugged loose tube design features optical fibers placed inside PFM gel-filled buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL) and wrapped with flexible strength members covered with a water-blocking tape. A corrugated steel armor is applied and then encased in a black jacket with an integrated EHS steel messenger. Rip cords are included under the armor for ease of entry.
- Attributes
- Features
Attributes
General Information
BrandSeries 12M
ManufacturerSuperior Essex
PackagingWooden Reel
Product CategoryOSP Fiber
StandardsTelcordia® GR-20-CORE
Design & Construction
ColorBlack
Cable ConfigurationStranded Loose Tube
MaterialMDPE
EnvironmentOutdoor
Water BlockDri-Lite
Features
- Available with up to 288-fiber
- Multiple fiber types including composites
- Dry (SAP) core standard
- Corrugated steel armor
- Utilizes standard pole attachment hardware
- PFM gel
