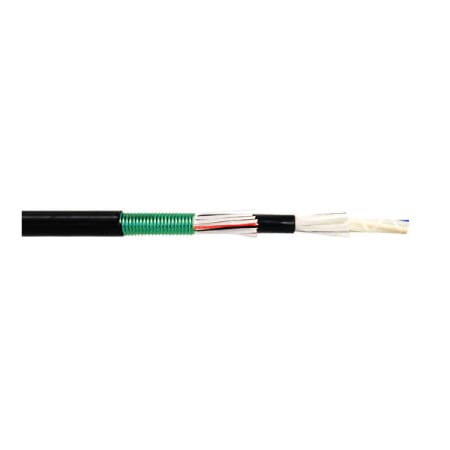

1A1443101 Superior Essex Loose Tube Double Jacket Single Armor
MFR #:1A1443101
GCG #:1A1443101
MFR #:1A1443101
GCG #:1A1443101
Min Qty:1
|Qty Increment:1
Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The rugged loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers are placed inside filled buffer tubes containing PFM gel. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape then encased with a black inner jacket. Water-blocking yarns and a corrugated steel armor are applied and a black outer jacket completes the cable construction. Rip cords are included under the inner jacket and armor for ease of entry.
Request Quote
Min Qty:1
|Qty Increment:1
Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The rugged loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers are placed inside filled buffer tubes containing PFM gel. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape then encased with a black inner jacket. Water-blocking yarns and a corrugated steel armor are applied and a black outer jacket completes the cable construction. Rip cords are included under the inner jacket and armor for ease of entry.
- Attributes
- Features
Attributes
General Information
BrandSeries 1A
ManufacturerSuperior Essex
PackagingWooden Reel
Product CategoryOSP Fiber
StandardsTelcordia® GR-20-CORE
Design & Construction
ColorBlack
Cable ConfigurationStranded Loose Tube
MaterialMDPE
EnvironmentOutdoor
Water BlockPFM Gel
Features
- Available with up to 288-fiber
- Multiple fiber types including composites
- Dry (SAP) core standard
- Standard tube size for all fiber counts
- Corrugated steel armor
- PFM gel
