1G0963101 Superior Essex Loose Tube Double Jacket Non-Armor
MFR #:1G0963101
GCG #:1G0963101
MFR #:1G0963101
GCG #:1G0963101
Min Qty:1
|Qty Increment:1

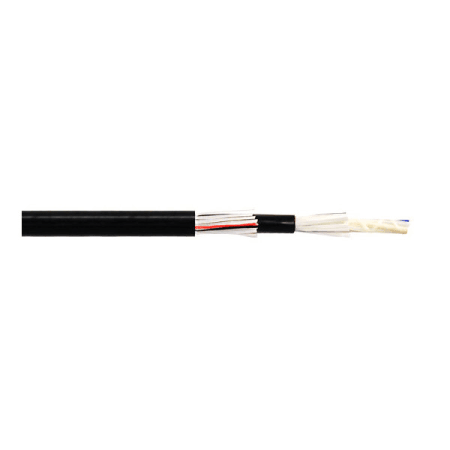

Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The rugged loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers are placed inside filled buffer tubes containing PFM gel. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape, then encased with a black inner jacket. Water-blocking yarns and a black outer jacket are applied. Rip cords are included under each jacket for ease of entry.
Request Quote
Min Qty:1
|Qty Increment:1
Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The rugged loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers are placed inside filled buffer tubes containing PFM gel. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape, then encased with a black inner jacket. Water-blocking yarns and a black outer jacket are applied. Rip cords are included under each jacket for ease of entry.
- Attributes
- Features
Attributes
General Information
BrandSeries 1G
ManufacturerSuperior Essex
PackagingWooden Reel
Product CategoryOSP Fiber
StandardsTelcordia® GR-20-CORE
Design & Construction
ColorBlack
Cable ConfigurationStranded Loose Tube
MaterialMDPE
EnvironmentOutdoor
Water BlockPFM Gel
Features
- Available with up to 288-fiber
- Multiple fiber types including composites
- Central strength members available in metallic or dielectric
- Dry (SAP) core standard
- Standard tube size for all fiber counts
- PFM gel
