130123T01 Superior Essex Loose Tube Indoor/Outdoor
MFR #:130123T01
GCG #:130123T01
MFR #:130123T01
GCG #:130123T01
Min Qty:1
|Qty Increment:1

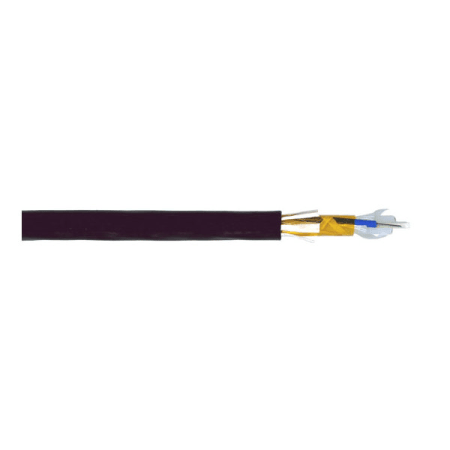

Loose tube riser cables are ideal for campus environments, private networks and local area networks. These dual purpose cables save money and installation time by allowing a direct transition from indoor to outdoor applications with a single cable. Because these cables are fully water blocked with dry elements, stripping and termination is faster. These cables comply with the standards for both Outside Plant (OSP) and indoor riser applications. The loose tube design offers reliable transmission performance over a broad temperature range. The rugged loose tube design features optical fibers placed inside PFM gel-filled buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). It is wrapped with flexible strength members, covered with a heat resistant, water-blocking tape and then encased with a black, flame and sunlight resistant jacket. A rip cord is included under the jacket for ease of entry.
Request Quote
Min Qty:1
|Qty Increment:1
Loose tube riser cables are ideal for campus environments, private networks and local area networks. These dual purpose cables save money and installation time by allowing a direct transition from indoor to outdoor applications with a single cable. Because these cables are fully water blocked with dry elements, stripping and termination is faster. These cables comply with the standards for both Outside Plant (OSP) and indoor riser applications. The loose tube design offers reliable transmission performance over a broad temperature range. The rugged loose tube design features optical fibers placed inside PFM gel-filled buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). It is wrapped with flexible strength members, covered with a heat resistant, water-blocking tape and then encased with a black, flame and sunlight resistant jacket. A rip cord is included under the jacket for ease of entry.
- Attributes
- Features
Attributes
General Information
BrandSeries 13 OFNR
ManufacturerSuperior Essex
PackagingWooden Reel
Product CategoryOSP Fiber
StandardsTelcordia® GR-20-CORE
Design & Construction
ColorBlack
Cable ConfigurationStranded Loose Tube
MaterialPVC
EnvironmentIndoor/Outdoor
Water BlockPFM Gel
Features
- Available with up to 432-fiber
- Multiple fiber types including composites
- UL Listed, sunlight resistant
- Dielectric outer strength members
- Dry (SAP) core standard
- Standard tube size for all fiber counts
- Transitions from indoor to outdoor to indoor with no termination
- PFM gel
