1A0723D01 Superior Essex Dri-Lite® Loose Tube Double Jacket Single Armor
MFR #:1A0723D01
GCG #:1A0723D01
MFR #:1A0723D01
GCG #:1A0723D01
Min Qty:1
|Qty Increment:1

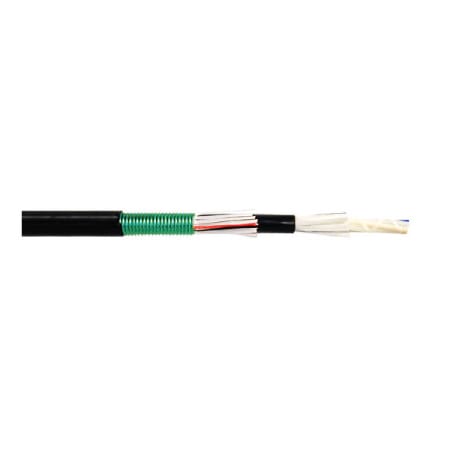

Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The rugged loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape then encased with a black inner jacket. Water-blocking yarns and a corrugated steel armor are applied and a black outer jacket completes the cable construction. Rip cords are included under the inner jacket and armor for ease of entry.
Request Quote
Min Qty:1
|Qty Increment:1
Loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. The rugged loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL). The core is wrapped with flexible strength members covered with a water-blocking tape then encased with a black inner jacket. Water-blocking yarns and a corrugated steel armor are applied and a black outer jacket completes the cable construction. Rip cords are included under the inner jacket and armor for ease of entry.
- Attributes
- Features
Attributes
General Information
BrandSeries 1AD
ManufacturerSuperior Essex
PackagingWooden Reel
Product CategoryOSP Fiber
StandardsTelcordia® GR-20-CORE
Design & Construction
ColorBlack
Cable ConfigurationStranded Loose Tube
MaterialMDPE
EnvironmentOutdoor
Water BlockDri-Lite
Features
- Available with up to 288-fiber
- Multiple fiber types including composites
- Dry (SAP) core standard
- Standard tube size for all fiber counts
- Corrugated steel armor
- Gel-free tubes
